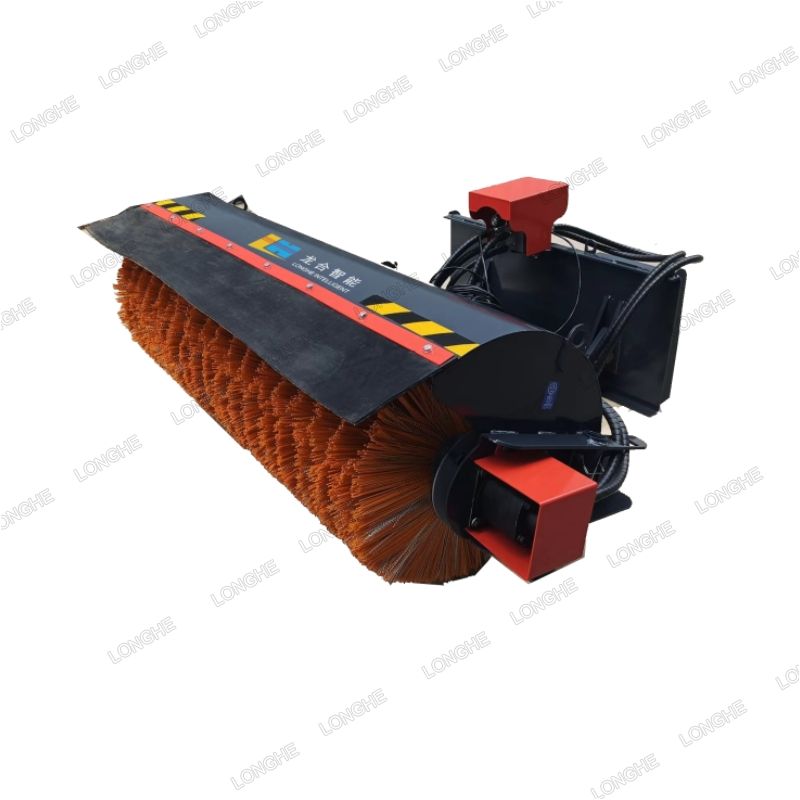

Angled Sweeper

It is a kind of economic road sweeping equipment, hydraulic inclined angle sweeper can be installed in skid steer loader, suitable for the road in the removal of snow, dust and debris such as waste rock sweeping, especially in the use of narrow space has obvious advantages.

Features:
Beveled Angle Design: The scraper adopts a beveled angle design, the maximum inclination angle is 30° left and right, which can better fit the ground and remove debris with better effect.
Wear-resistant material: the scraper and supporting frame of the bevel sweeper are made of wear-resistant material, which has high wear resistance and durability, and the brush design will not damage the paved surface layer of the road.
Hydraulic control: The angled sweeper can be controlled and operated by the hydraulic system of the loader, which is simple and convenient to operate.
Safe and Reliable: The inclined angle sweeper adopts a safe and reliable design, avoiding the safety hidden danger caused by manual sweeping and improving working safety.
Parking design: when parking the angled sweeper, it should be supported by its two supporting legs to avoid deformation of the broom due to long time extrusion.

1. Width: 2420mm

2. Height: 925mm

3. Length: 1738mm

4. Sweeping Width: 2100mm

5. Deflection Angle: ±30°

6. Brush Roll Diameter: 800mm

7. Sweeping width after 30°deviation: 1850mm

8. Weight: 620kg
