One of the most essential products in many sectors, designed with high-quality materials so that it can serve you many years and is available with different make couplings.

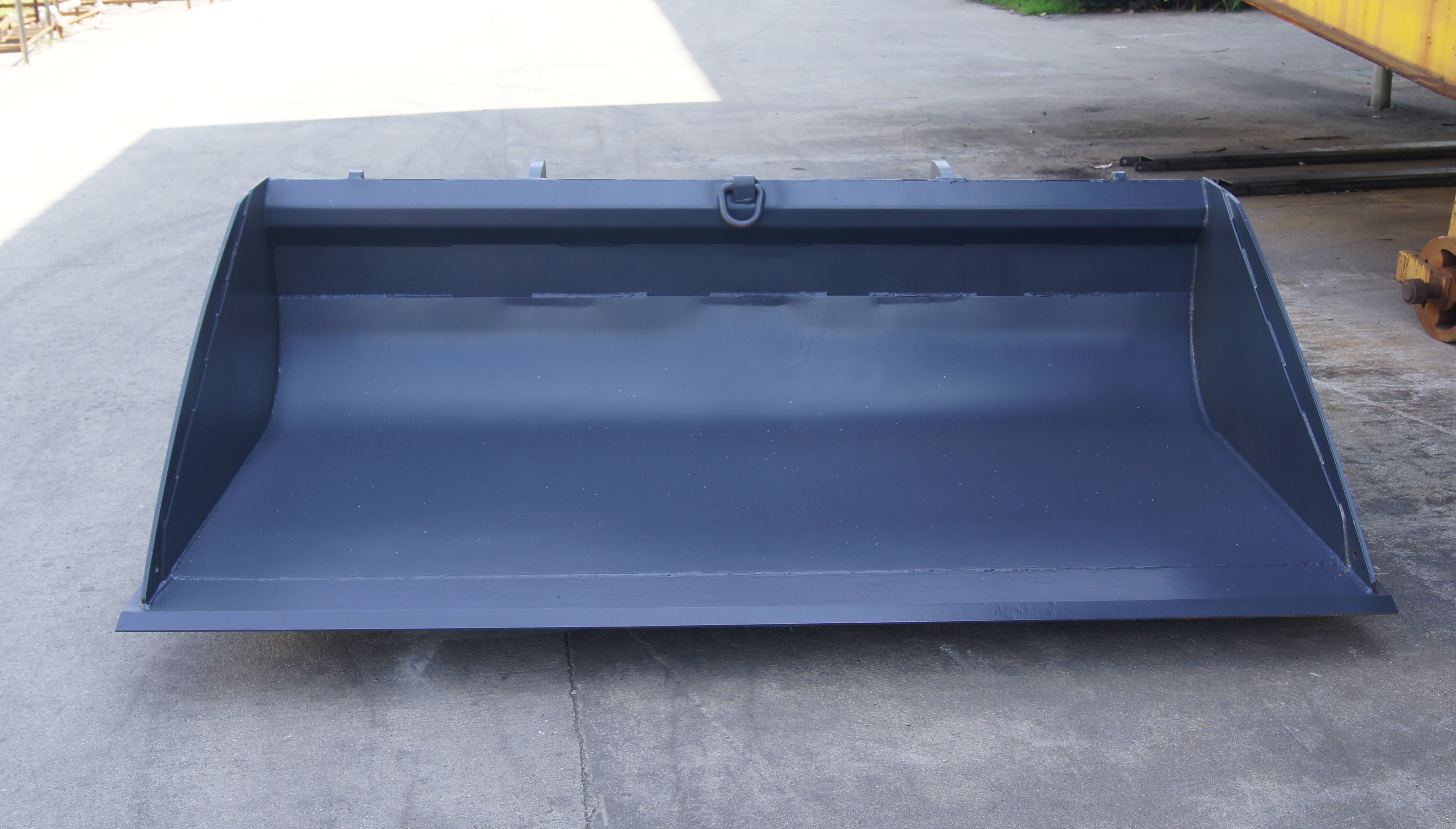

The bucket is designed for optimal loading and emptying angles. Made of high-quality steel for best durability.
Features:
- Reinforced steel blade increases the wear resistance
- High quality of the welding process increases the durability
- Different capacities
- Different brand connections
| Model | Width | Mounting Class | Capacity | Volume Capacity | Weight |
| (mm) | (kg) | (m³) | (kg) | ||
| CD20W-WGG-1600 | 1600 | Without coupling | 2000 | 1 | 300.5 |
| CD22W-WGG-1800 | 1800 | Without coupling | 2200 | 1.1 | 325 |
| CD24W-WGG-2000 | 2000 | Without coupling | 2400 | 1.2 | 347.5 |
| CD26W-WGG-2200 | 2200 | Without coupling | 2600 | 1.3 | 372 |
| CD29W-WGG-2500 | 2500 | Without coupling | 2900 | 1.45 | 409 |
| CD26W-5887-2140 | 2140 | Euro | 2600 | 1.3 | 381 |
| CD26W-5892-2200 | 2200 | Big BM | 2600 | 1.3 | 418 |
| CD24W-LBZM420-2000 | 2000 | LBZM420 | 2400 | 1.2 | 386.5 |
| CD29W-LBZM420-2500 | 2500 | LBZM420 | 2900 | 1.45 | 447.5 |
| CD22W-L30-1800 | 1800 | L30 | 2200 | 1.1 | 368.5 |
| CD24W-L30-2000 | 2000 | L30 | 2400 | 1.2 | 391 |
| CD26W-L30-2200 | 2200 | L30 | 2600 | 1.3 | 415 |
| CD22W-5887-1800 | 1800 | Euro | 2200 | 1.1 | 343.5 |
| CD24W-5887-2000 | 2000 | Euro | 2400 | 1.2 | 366 |
| CD26W-5887-2200 | 2200 | Euro | 2600 | 1.3 | 390 |
| CD22W-5882-1800 | 1800 | SMS | 2200 | 1.1 | 348 |
| CD24W-5882-2000 | 2000 | SMS | 2400 | 1.2 | 370 |
| CD26W-5882-2200 | 2200 | SMS | 2600 | 1.3 | 394 |
| CD29W-5882-2500 | 2500 | SMS | 2900 | 1.45 | 431 |
Note
* Further technical details are available upon request
