Fork Positioner Sideshifting K Series

Enables operator to move forks wider apart or closer together hydraulically. Used to position forks to handle different load sizes that has different fork entries or width. When equipped with sideshifting function, it enables the forklift to move loads from side to side to ease stacking, loading and unloading of goods.

Enables operator to move forks wider apart or closer together hydraulically. Used to position forks to handle different load sizes that has different fork entries or width. When equipped with sideshifting function, it enables the forklift to move loads from side to side to ease stacking, loading and unloading of goods. Used in most industries with loads of different sizes for stacking, loading.


Functions & Applications

Sideshiting fork positioned is widely used in logistic industry, warehouse and manufacturing industry, etc. Adjust forks without leaving the seat.


Features

● Excellent driver visibility and secure operation

● Self-lubricate bearing for extended the service life.

● Adjustable fork carriage for various forks.

● Easy and fast maintenance

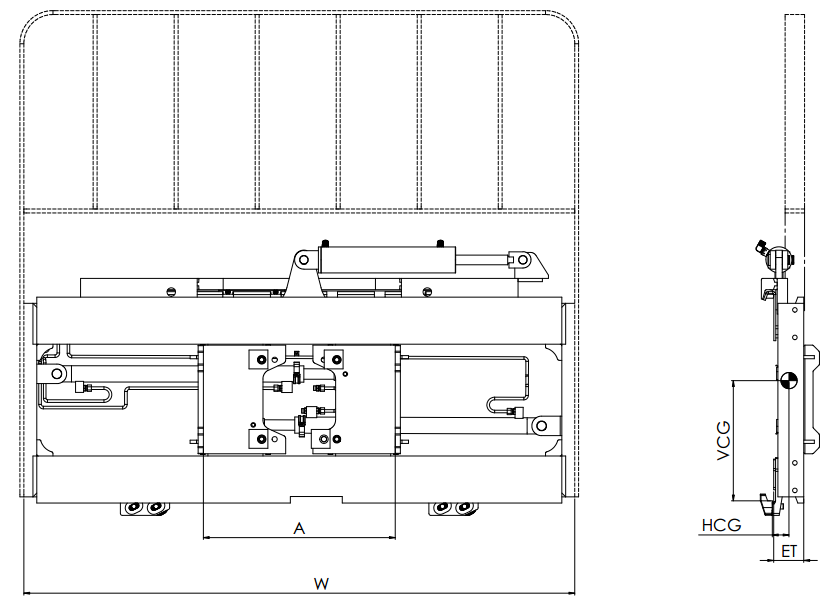

K Series Forklift Truck Fork Positioner


Capacity@
Load Center
ModelMounting
Class
Opening
Range
Carriage
Width
Fork Pocket
Width
Vertical
Center of
Gravity
WeightEffective
Thickness
Horizontal
Center of
Gravity
(kg@mm)

A(mm)W(mm)(mm)VCG(mm)(kg)ET(mm)HCG(mm)
4500@600TJC45K-C001-1500III460-12801500140-1603032359755
4500@600TJC45K-C001-1900III468-16681900140-1603032689755
6800@600TJC68K-D001-1500IV365-12601500140-1603713188752
6800@600TJC68K-D001-1900IV465-16651900140-1603723478752
8000@600TJC80K-D001-1800IV488-15641800140-1603633309757
8000@600TJC80K-D001-2200IV450-19002200140-1603635009757
8000@600TJC80K-D001-2400IV590-20402400140-1603635859757


Recommend Hydraulic Flow: 8L/min

Pressure: 160 Bar

Note

1. Please contact FLT manufacture for the residual capacity of attachment

2. 2 additional hydraulic circuits required

3. Sideshifting: TJC45K: 200mm (+/- 100mm); TJC68K, TJC80K: 300mm (+/- 150mm)

4. Opening range refers to the distance between fork’s outer edges

5. The max fork length is 1520mm

6. Without forks and backrets , optional upon requested

* Further technical details are available upon request.
