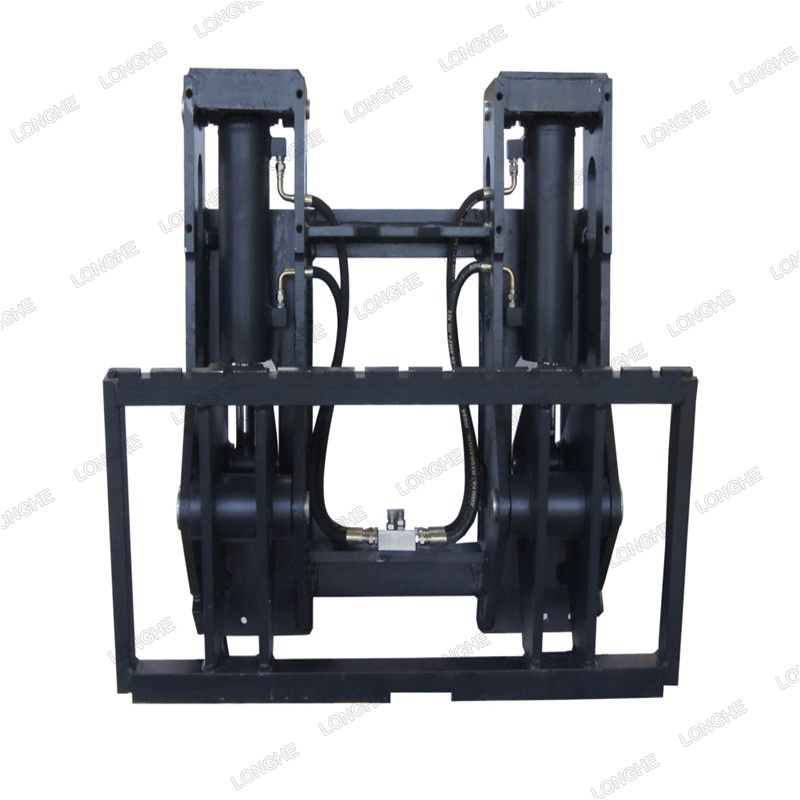

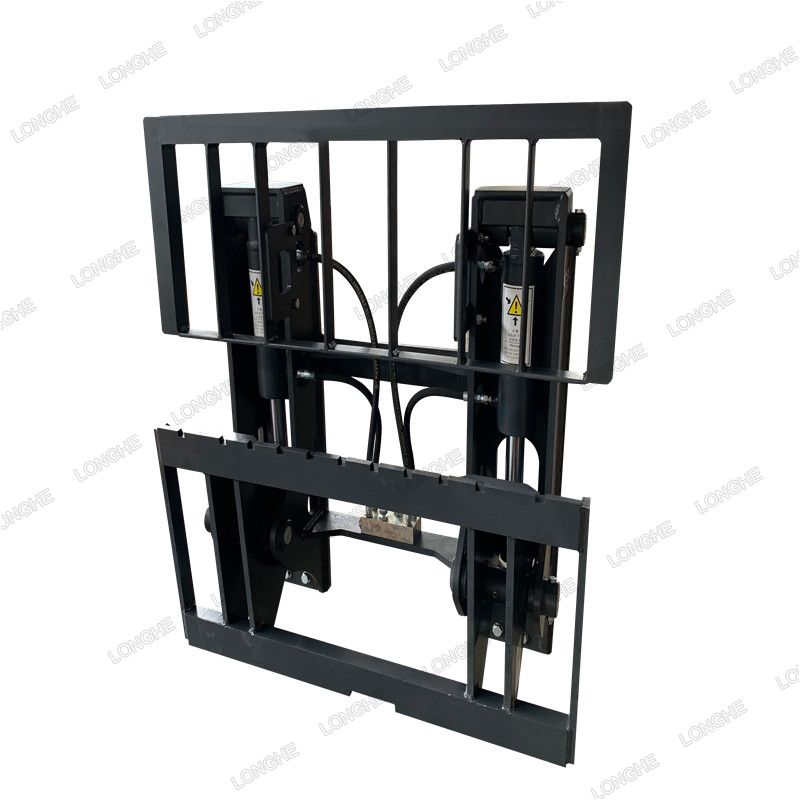

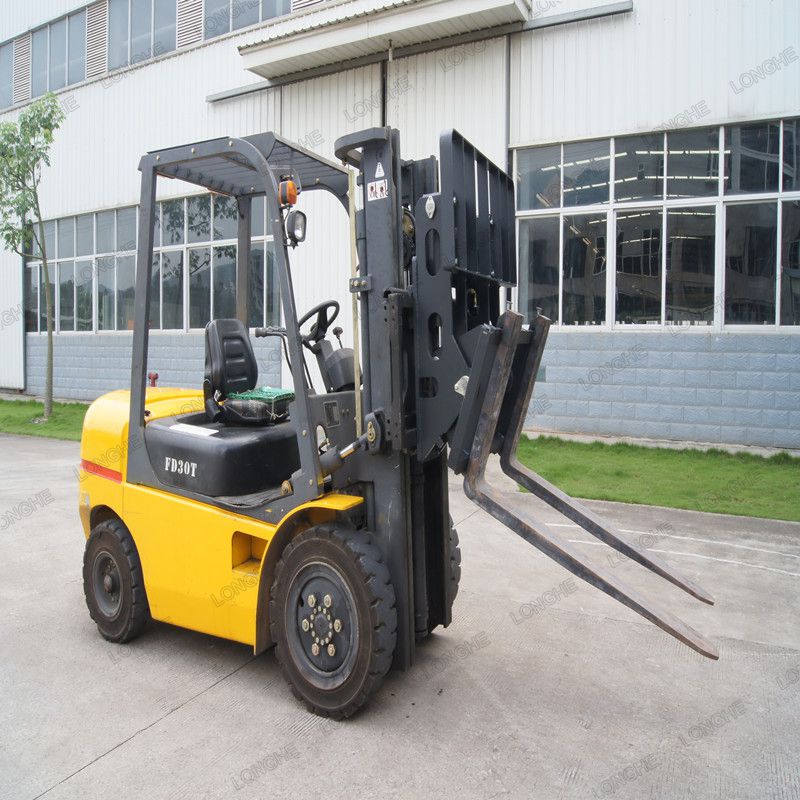

Hinged fork can increase the fork carriage leaning and sloping angle, realized tilt up 25°, tilt down 45°. Equipped with special adaptor like bucket, can efficiently tip over the goods in the container, extensively use on recycling, fertilizer, sediment, plastic grain, etc, which can improve the flexibility of the forklift and handling efficiency.
Functions &Applications
Hinged fork can increase the fork carriage leaning and sloping angle, realized tilt up 25°,tilt down 45°.Used it in conjunction with bucket, can efficiently tip over the goods in the container, extensively use on goods recyclefertilizer sediment plastic grain, etc. Greatly improve the flexibility of the forklift and handling efficiency.
Features
● Rational designed, compact structure, excellent driver visibility, motor operation
● Reasonable hydraulic components configuration, make good protection of hydraulic system and extend service life
● Efficient and secure operation stable and reliable tipping speed, easy maintenance
● Hinged fork cylinder installed with hydraulic safety lock, more stable and reliable

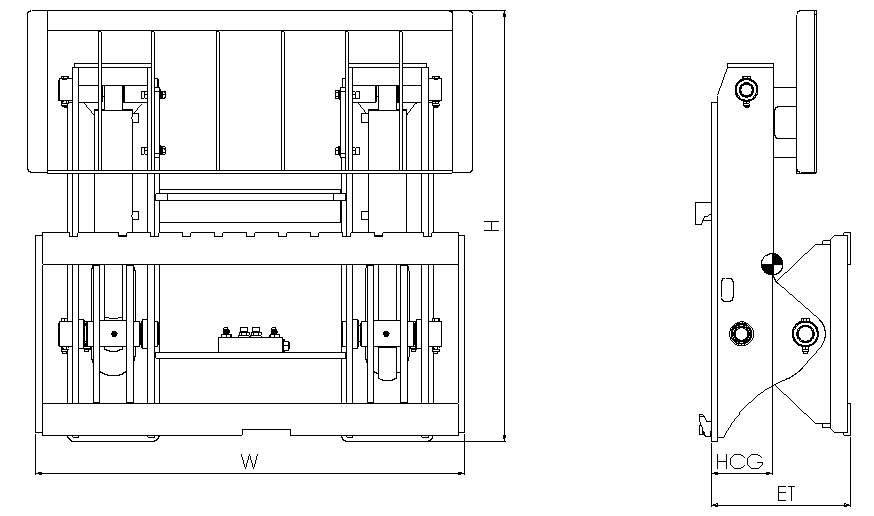

| Capacity@Load Center | Catalog Order No. | Fork | Carriage Width | Ttuck Mounting Class | Hinged Fork Mounting Class | Weight | Effective Thickness | Horizontal Center of Gravity | Overall Height | Tilt Forward Tilt Backward |
| (kg@mm) | B(mm) | (kg) | ET(mm) | HCG(mm) | H(mm) | （°） | ||||
| 2500/500 | QFC25D-B001 | / | 1070 | Ⅱ | Ⅱ | 286 | 340 | 153 | 1078 | 45°/25° |
| 2500/500 | QFC25D-C001 | / | 1070 | Ⅲ | Ⅲ | 297 | 340 | 153 | 1078 | 45°/25° |
| 3500/500 | QFC35F-C001 | / | 1130 | Ⅲ | Ⅲ | 408 | 362 | 160 | 1115 | 45°/25° |
| 4500/500 | QFC45F-D001 | / | 1800 | Ⅳ | Ⅲ | 770 | 410 | 208 | 1115 | 45°/25° |
| 2500/500 | QFC25G-B001 | / | 107 | Ⅱ | Ⅱ | 276 | 340 | 149 | 1078 | 45°/25° |
| 3000/500 | QFC30G-C001 | / | 1070 | Ⅲ | Ⅲ | 312 | 340 | 163 | 1078 | 45°/25° |
| 3500/500 | QFC35G-C001 | / | 1130 | Ⅲ | Ⅲ | 398 | 352 | 163 | 1115 | 45°/25° |
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 1 additional hydraulic circuit required
3. Without Forks
* Further technical details are available upon request
