Mainly used in stabilization of goods on pallet to avoid them slip down during transportation. Particularly used in fragile or one with higher height and poor stability products handling and stacking, e.g food、beverage, logistic、import and export trade, and etc.
Functions & Applications
Mainly used in stabilization of goods on pallet to avoid thegoods slipping off during operation. Particularly used in fragileproducts handling and stacking, e.g food and beverage industry, import and export trade, etc.
Features
● Installed on forklift directly without assembling for improving work efficiency
● Reasonable design, excellent appearance and easy operation
● Easy and fast maintenance

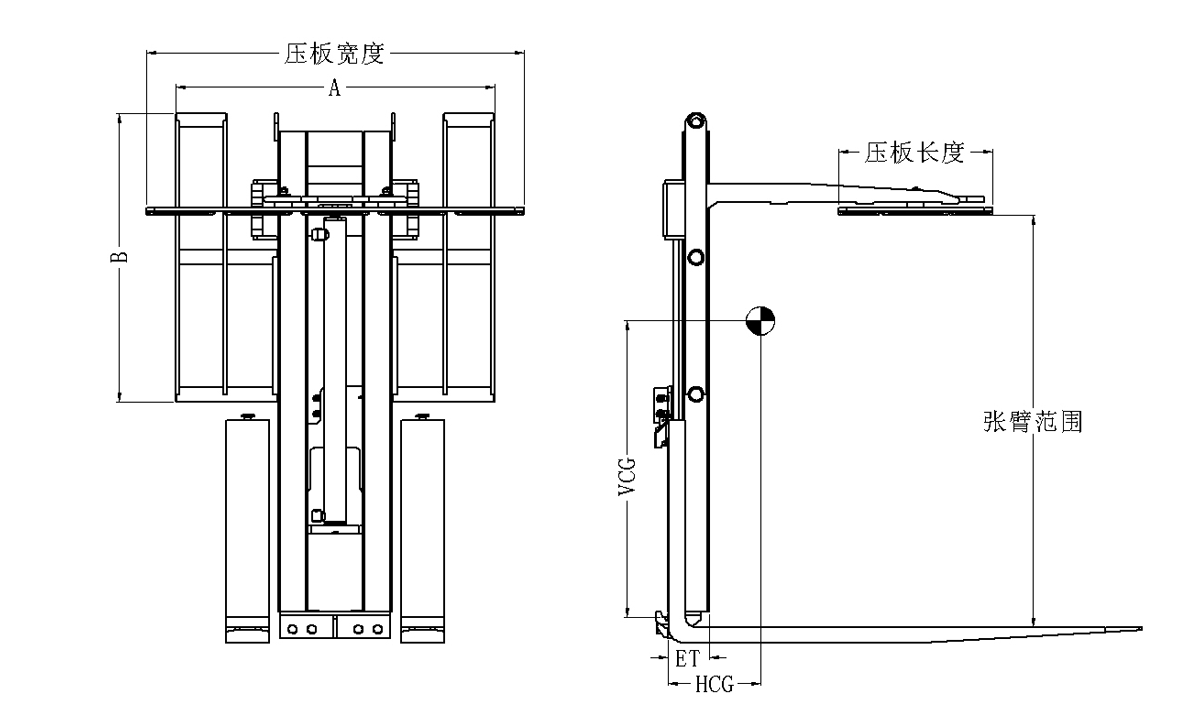

| Capacity@Load Center | Model | Mounting Class | Opening Range | Type | Pad Size | Frame Width | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| (kg@mm) | A(mm) | (mm) | (mm) | VCG(mm) | (kg) | ET（mm) | HCG(mm) | |||
| 1600@600 | WDQ16D-B007 | II | 1380-2300 | NON-SS* | 1450*850 | 400 | 1090 | 280 | 160 | 250 |
| 1600@600 | WDQ16D-B013 | II | 1580-2500 | NON-SS* | 1100*1100 | 500 | 1014 | 360 | 163 | 250 |
| 4500@600 | WDQ45D-C001 | Ⅲ | 1200-2000 | NON-SS* | 1100*450 | 320 | 500 | 280 | 183 | 200 |
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 1 additional hydraulic circuit required
3.Without Forks
* Further technical details are available upon request
