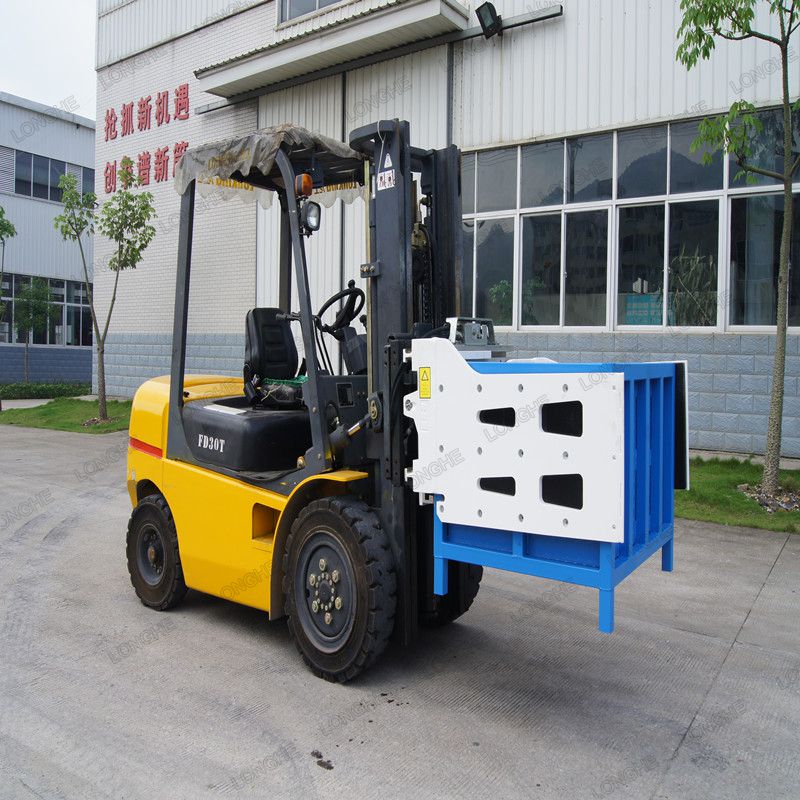

Multi-purpose clamp can handle and rotate unitised or box-shaped products palletless with high efficiency and safety. Design of lateral sliding arm for smooth clamping and sideshifting function and 360° rotation. . Large contact pad can reduce the possibilities of distortion or damaging to load while handling. It is widely used in tobacco and logistic warehouse.
Functions & Applications
Multi-purpose clamp can efficiently and economically handle any type of paper carton, wooden carton, metal carton and baled products without work platform including tobacco, newsprint, chemical fiber, workshop and port, etc.
Features
● Proven durable T-beam arm and aluminum alloy frame construction
● Regenerative hydraulic valving for optimal arm speed
● Superior arm-slide bearing for extended service life
● Vulcanized rubber pads design, economically
● Excellent driver visibility

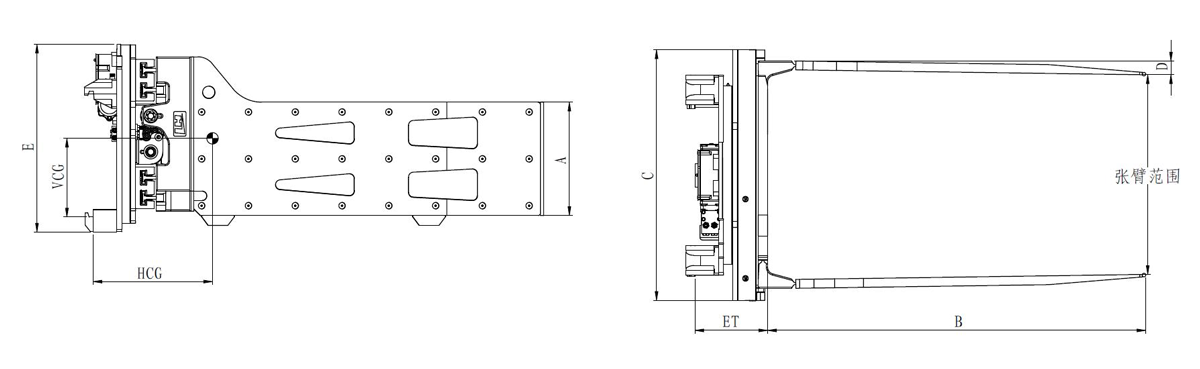

| Capacity@ Load Center | Catalog Order No. | Mounting Class | MTG.Angle | Opening Range | Arm Height | Arm Length | Frame Width | Arm Thickness | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| (kg@mm) | A(mm) | (mm) | (mm) | (mm) | (mm) | VCG(mm) | (kg) | ET(mm) | HCG(mm) | |||
| 1900@500 | GBX16D-B001 | Ⅱ | 0° | 480-1770 | 600 | 1015 | 1040 | 75 | 335 | 650 | 277 | 345 |
| GBX16D-B018 | Ⅱ | 0° | 410-1560 | 610 | 615 | 1000 | 50 | 352 | 530 | 233 | 210 | |
| 2300@500 | GBX23D-C005 | Ⅲ | 0 | 590-1940 | 462 | 1190 | 1016 | 61 | 335 | 832 | 312 | 340 |
Recommend Hydraulic Flow: 40L/min –120L/min
Pressure: 160 Bar
Rotating Speed: 5.2r/min@60L/min
Rotating Torque:9000N´m@160bar
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 2 additional hydraulic circuits
3. Opening range refers to distance between arm tips
4. Dimension E refers to operation space required for arm
* Further technical details are available upon request
