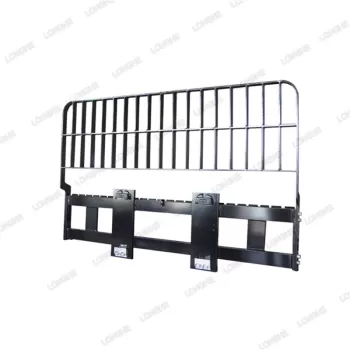

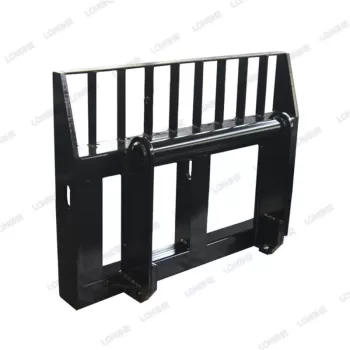

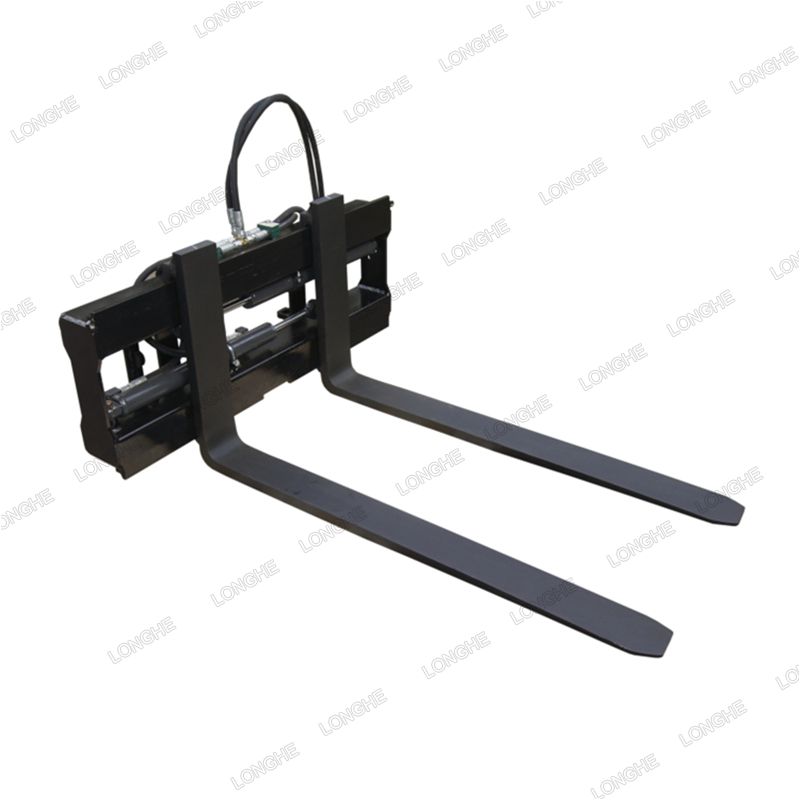

We manufacture robust hydraulic pallet fork frame that meet today’s high standards of safety and quality.
The construction of the fork position gives the driver an optimal view from the driver’s seat.
The forks are moved hydraulically with fork spreading as standard.
| Model | Capacity | Mounting Class | Carriage width | Coupling | Fork size |
| (kg) | (mm) | (mm) | |||
| YHCJ15D-FCA2-B1000(1100) | 1500 | II | 1000 | Avant 300/700 | 100X30X1100 |
| YHCJ25D-5882-B1200(1200) | 2500 | II | 1200 | SMS | 100x40x1200 |
| YHCJ25D-5887-B1200(1200) | 2500 | II | 1200 | EURO | 100x40x1200 |
| YHCJ25D-5888-B1200(1200) | 2500 | II | 1200 | Small BM | 100x40x1200 |
| YHCJ25D-5894-B1200(1200) | 2500 | II | 1200 | Volvo L30 | 100x40x1200 |
| YHCJ25D-ALO-B1200(1200) | 2500 | II | 1200 | ALO | 100x40x1200 |
| YHCJ25D-SJJ-B1200(1200) | 2500 | II | 1200 | 3 point | 100x40x1200 |
| YHCJ25D-WGG-B1200(1200) | 2500 | II | 1200 | Without coupling | 100x40x1200 |
| YHCJ25D-B001-B1200(1200) | 2500 | II | 1200 | ISO 2 | 100x40x1200 |
| YHCJ25D-S40-B1200(1200) | 2500 | II | 1200 | S40 | 100x40x1200 |
| YHCJ25D-S45-B1200(1200) | 2500 | II | 1200 | S45 | 100X40X1200 |
| YHCJ25D-S50-B1200(1200) | 2500 | II | 1200 | S50 | 100X40X1200 |
| YHCJ25D-S4050-B1200(1200) | 2500 | II | 1200 | S4050 | 100X40X1200 |
| YHCJ35D-WGG-C1200(1200) | 3500 | III | 1200 | Without coupling | 125x50x1200 |
| YHCJ35D-NTP10-C1500(1500) | 3500 | III | 1500 | NTP10 | 125x50x1500 |
| YHCJ50I-S60-T1580(1200) | 5000 | PIN TYPE | 1580 | S60 | 125x50x1200 |
| YHCJ50I-S70-T1580(1200) | 5000 | PIN TYPE | 1580 | S70 | 125x50x1200 |
| YHCJ50I-S6070-T1580(1200) | 5000 | PIN TYPE | 1580 | S6070 | 125x50x1200 |
| YHCJ50I-5892-T1580(1500) | 5000 | PIN TYPE | 1580 | Big BM | 125x50x1500 |
| YHCJ50I-WGG-T1580(1200) | 5000 | PIN TYPE | 1580 | Without coupling | 125x50x1200 |
| YHCJ50I-WGG-T1580(1500) | 5000 | PIN TYPE | 1580 | Without coupling | 125x50x1500 |
| YHCJ60H-Magni-F1400(1200) | 6000 | PIN TYPE | 1400 | Magni | 150x50x1200 |
| YHCJ70H-5892-F1500(1600) | 7000 | PIN TYPE | 1500 | Big BM | 150x50x1600 |
| YHCJ70H-5892-F2230(1600) | 7000 | PIN TYPE | 2230 | Big BM | 150x50x1600 |
| YHCJ80I-5892-T2400(3000) | 8000 | PIN TYPE | 2400 | Big BM | 150x70x3000 |
| YHCJ80I-5892-T2060(2400) | 8000 | PIN TYPE | 2060 | Big BM | 150x70x2400 |
| YHCJ80I-5892-T2000(1200) | 8000 | PIN TYPE | 2000 | Big BM | 165x60x1200 |
| YHCJ80I-5892-T2000(1800) | 8000 | PIN TYPE | 2000 | Big BM | 165x60x1800 |
| YHCJ80I-5892-T2000(2400) | 8000 | PIN TYPE | 2000 | Big BM | 170x60x2400 |
| YHCJ100H-5892-F2230(1600) | 10000 | PIN TYPE | 2230 | Big BM | 150x60x1600 |
| YHCJ100H-5892-F2230(2000) | 10000 | PIN TYPE | 2230 | Big BM | 150x60x2000 |
| YHCJ100G-5892-F2230(1600) | 10000 | PIN TYPE | 2230 | Big BM | 150x60x1600 |
| YHCJ100G-5892-F2230(2000) | 10000 | PIN TYPE | 2230 | Big BM | 150x60x2000 |
Note
* Further technical details are available upon request
