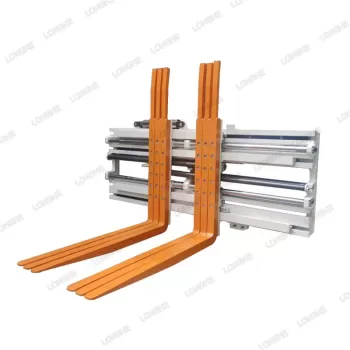

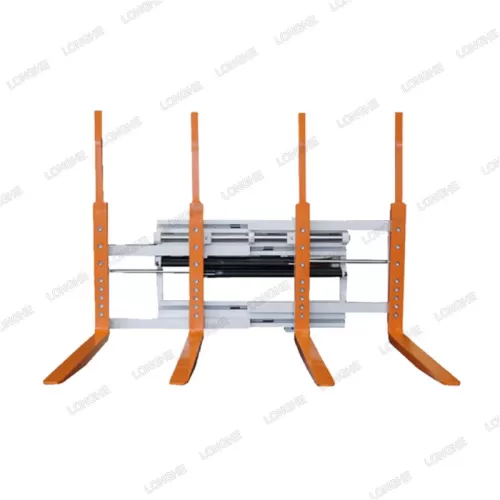

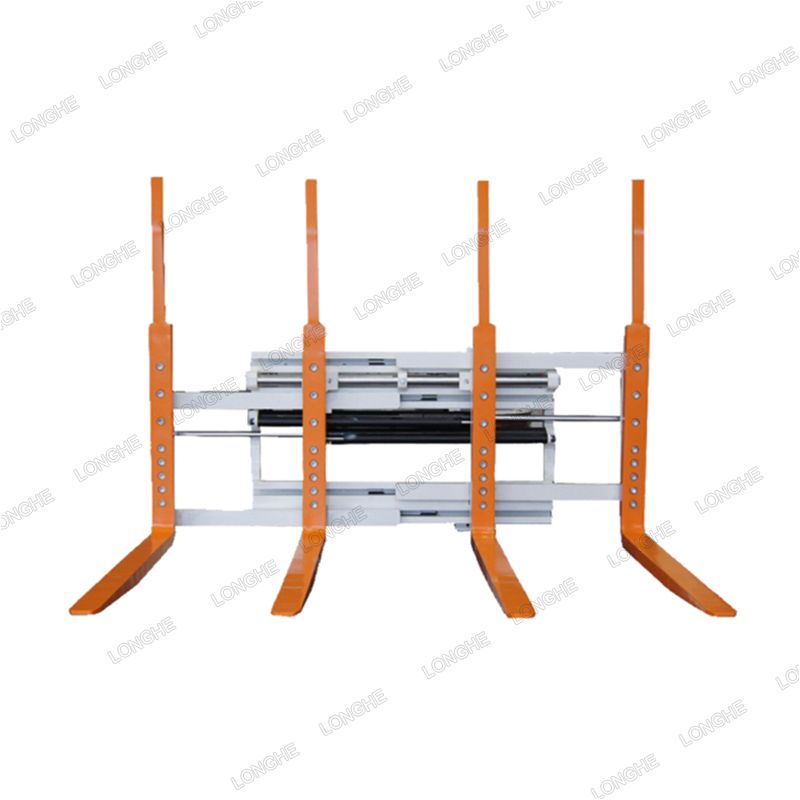

Single Double Pallet Handler

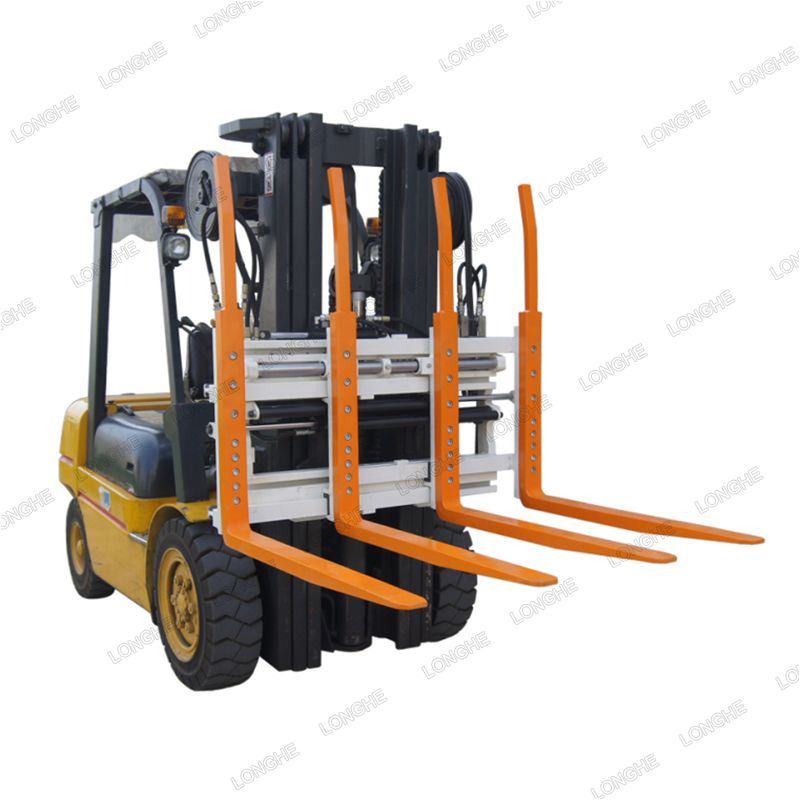

Enable operator to move forks to handle 1 or 2 loads at one time to improve productivity. Be able to move loads apart or closer together hydraulically when handling 2 loads at a time. When equipped with sideshifting function, it enables the forklift to move its load from side to side to ease stacking, loading and unloading of goods. Used in most industries which has high volume of unitized loads, like beverages, petrochemical, food and logistics.

Functions & Applications

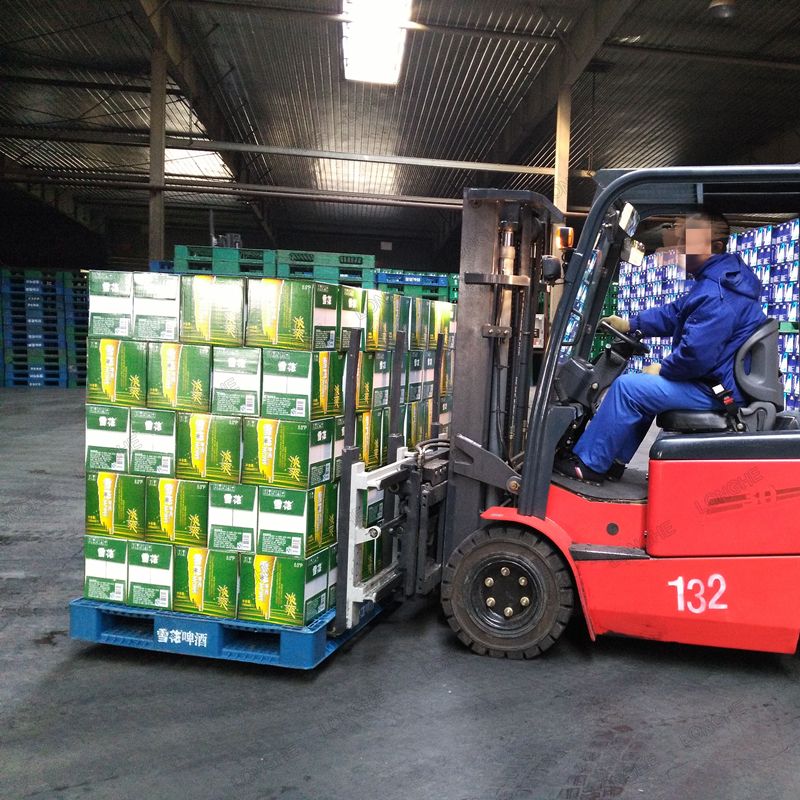

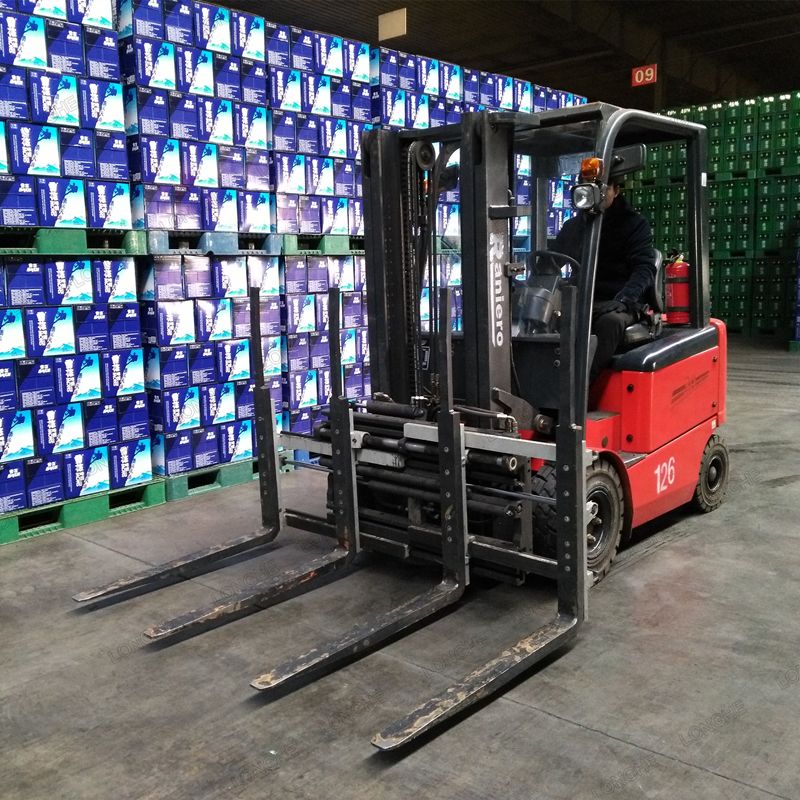

Flexible application of single or double pallets. Widely used in food and beverage industry, import and export trade and bulking goods industry for stacking operation. Particularly apply to handle and stack goods in container truck.

Features

● Easy operation of single or double pallets

● Easy and fast maintenance

● Stable and durable construction

● Excellent driver visibility

Single Double Pallet Handler

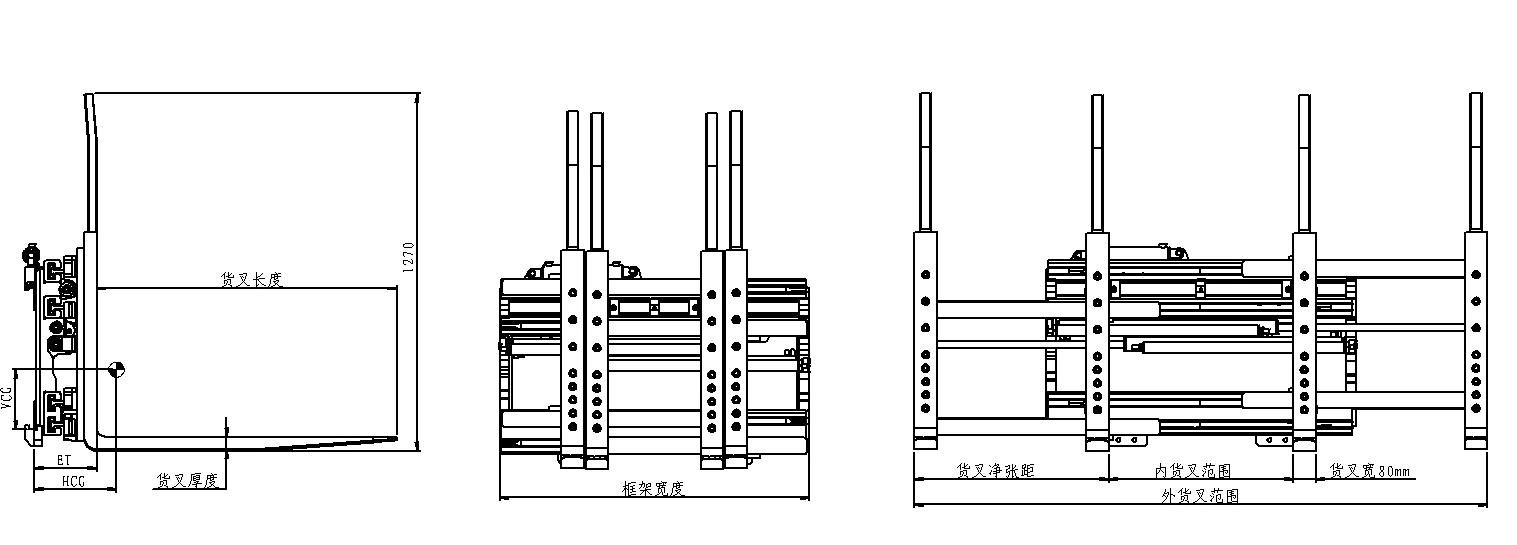

Capacity@ Load Center	Model	Mounting Class	Min.Truck Carriage Width	Frame Width	Weight	Effective Thickness	Horizontal Center of Gravity	Vertical Center of Gravity	Opening Rang ITI	Opening Rang OTO	Fork Set Spread	Fork Size	Backrest Height
BEVERAGE PALLETE（36″×36″，914mm×914mm）
2500@600	TPC25D-B001/C001	Ⅱ/Ⅲ	914	1100	470/462	226	217	270	330-815	660-2035	610	1065×80×45	1270
2500@600	TPC25D-B010/C010	Ⅱ/Ⅲ	914	1100	463/455	226	188	284	330-815	660-2035	610	1000×80×45	1270
2500@600	TPC25G-C002	Ⅲ	914	1100	570	226	225	339	310-795	640-2015	600	1065×80×45	1500
2500@600	TPC25G-C003	Ⅲ	914	1200	580	226	212	338	490-975	825-2200	610	1065×80×45	1500
EURO PALLETE（1200mmx800mm）
2500@600	TPC25D-B002/C002	Ⅱ/Ⅲ	914	1100	480/472	226	191	284	330-815	660-2035	610	1150×80×45	1270
2500@600	TPC25D-B006	II	980	1200	482	231	270	265	230-715	560-1935	560	1150X80X45	1270
2500@600	TPC25D-C021	Ⅲ	914	1100	590	226	357	195	330-815	660-2035	610	1500×80×45	1270
3000@600	TPC30D-C001	Ⅲ	980	1200	580	235	270	265	230-716	560-1935	560	1150X80X50	1270
3200@600	TPC32D-C001	Ⅲ	980	1200	650	254	270	265	330-816	660-2035	560	1150X80X60	1270
2500@600	TPC25G-C001	Ⅲ	914	1100	575	226	231	332	330-815	660-2035	610	1150×80×45	1500
2500@600	TPC25F-C001	Ⅲ	914	1100	520	224	243	253	330-815	660-2035	610	1220×80×45	1270

Recommend Hydraulic Flow: 40 – 120L/min

Pressure: 160 Bar

Note

1. Please contact FLT manufacture for the residual capacity of attachment

2. 2 additional hydraulic circuits required

3. Serial G designed with transverse hold bars on forks

* Other technical details available upon request
