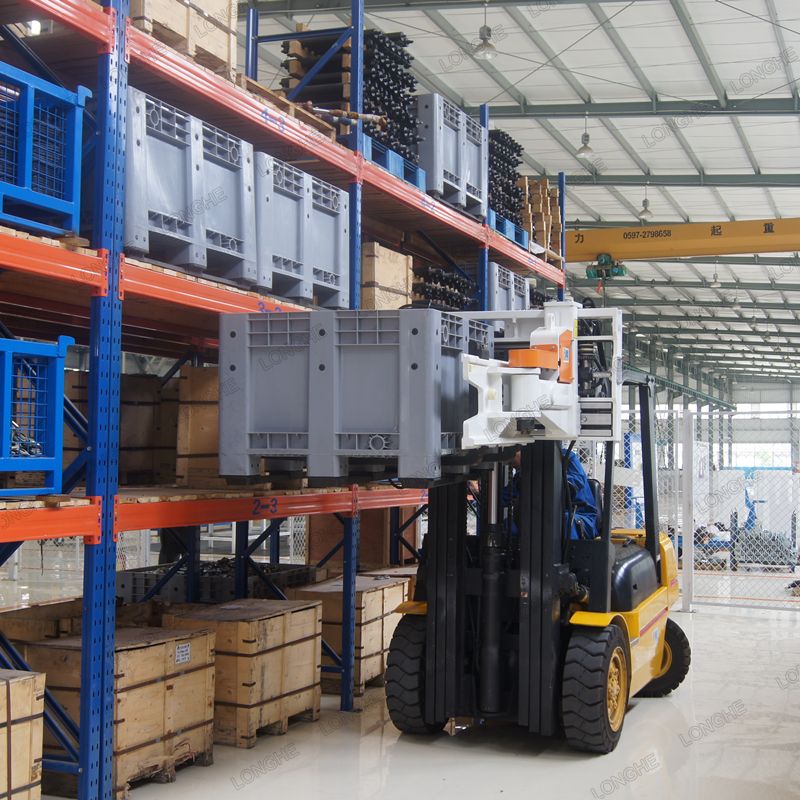

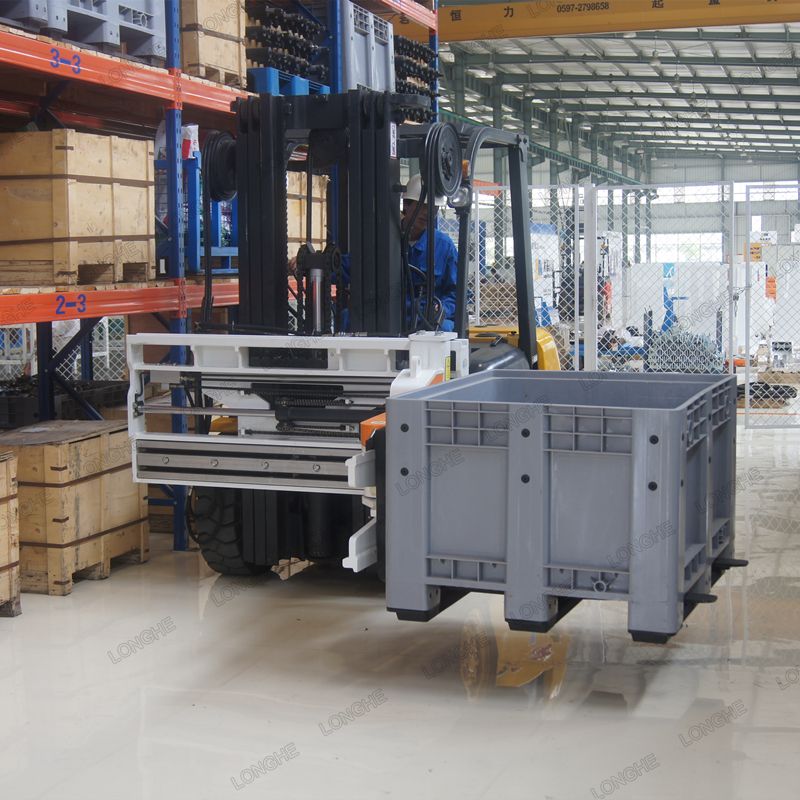

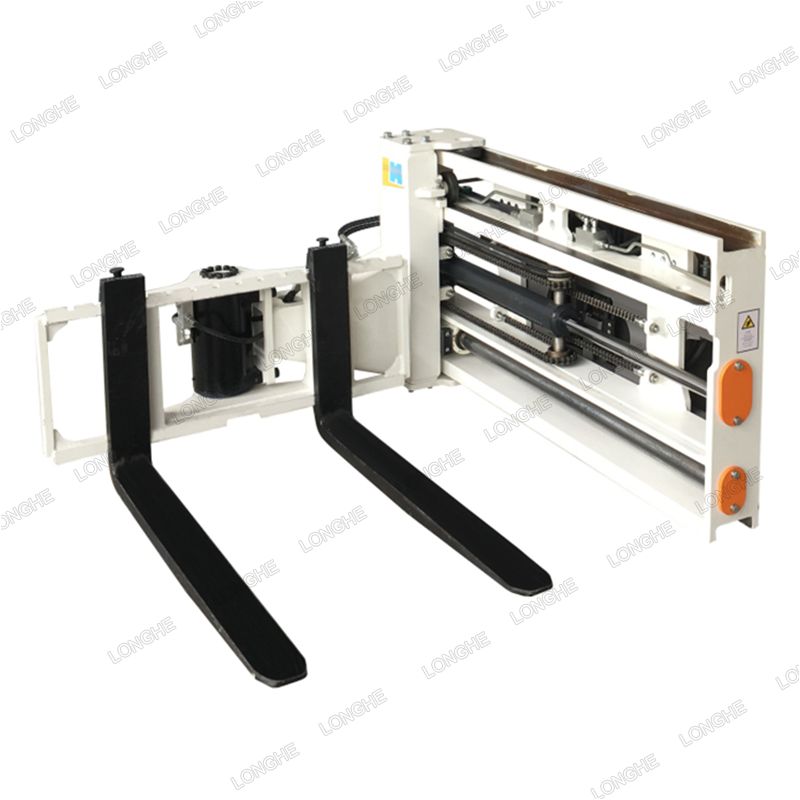

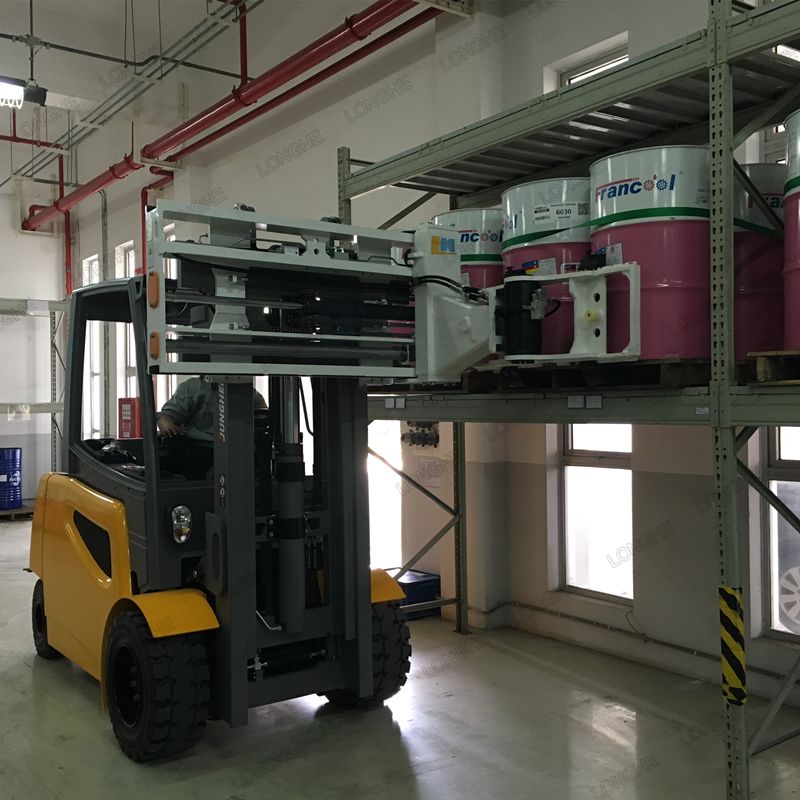

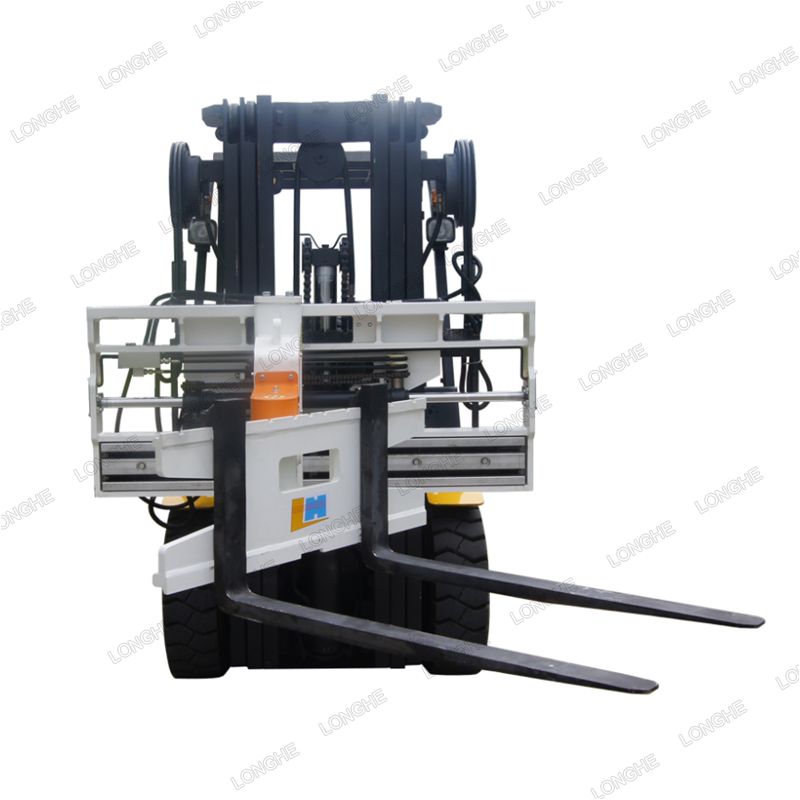

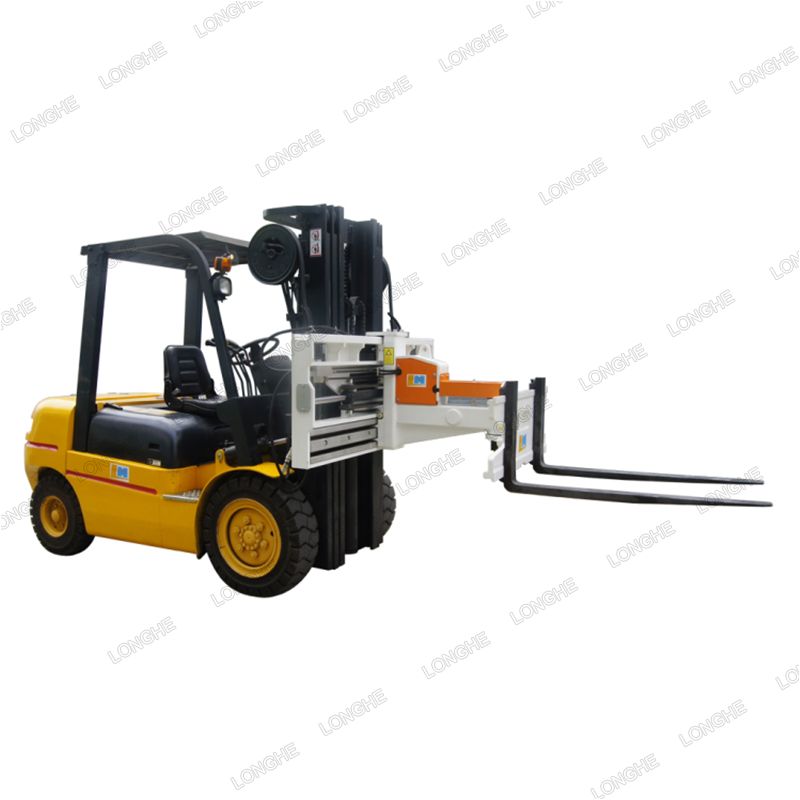

Tri-lateral head unit is an unique attachment that can put the forks on either front, left or right side while loading. Applied in manufacturing plants and logistic industries. It is located between forklift carriage and forks, and can be driven to swing 180 ° and move transversely via 2 units of hydraulic circuits. It can reach the goods from the side without turning around, realizing reload and stacking goods in the narrow aisle. With limitation and consideration of lateral stability of forklift operation, it can not carry out the performance the VNA truck owns, such as lift height and related operation. But reducing partially aisle space width of racks and increase storage space is one of its advantages
Functions & Applications
Tri-lateral head unit is an unique attachment that can put the forks on either front, left or right side while loading. It is between the forks and fork carriage, swing 180 degree and side shifting via 2 units of hydraulic circuit. It can reach the goods from the side without turning around, realizing reload and stack goods in the narrow aisle.
Features
● Achieved 180°side shifting by two sets oil circuit drive system.
● Upper arm-slide bearing used idler wheel sideway to ensure high coefficient of stability.
● Regenerative hydraulic valving for optimal side shifting speed.
● Chain drive system ensure the stable side shifting.

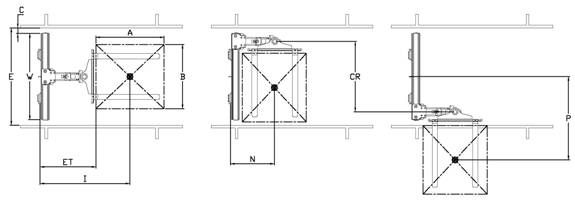

| Capacity | Model | Pallet Size | Stroke | Min. Working Space | Min. Ailse Width | Frame Width | Horizontal Center of Side | COG gravity of side load inside | COG of Side Outside | Weight | Effective Thickness |
| (kg) | A/B(mm) | CR(mm) | C(mm) | E(mm) | W(mm) | I(mm) | N(mm) | P(mm) | (kg) | ET(mm) | |
| 1000 | SXJ10G-C001 | 1200/1200 | 1350 | 90 | 1880 | 1700 | 1638 | 822 | 1522 | 668 | 1038 |
| 1000 | SXJ10G-C004 | 1000/1200 | 1100 | 90 | 1576 | 1394 | 1538 | 822 | 1315 | 603 | 1038 |
| 1000 | SXJ10G-B004 | 1000/1200 | 1100 | 90 | 1576 | 1394 | 1538 | 822 | 1315 | 603 | 1038 |
| 1500 | SXJ15G-C001 | 1200/1200 | 1300 | 80 | 1760 | 1600 | 1653 | 822 | 1465 | 669 | 1053 |
| 1500 | SXJ15G-C002 | 800/1200 | 900 | 80 | 1388 | 1200 | 1653 | 822 | 1080 | 582 | 1053 |
| 1500 | SXJ15G-C003/D003 | 1000/1200 | 1100 | 90 | 1576 | 1394 | 1553 | 822 | 1300 | 630 | 1053 |
Recommend Hydraulic Flow: 60L/min
Pressure: 60 Bar
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 2 additional hydraulic circuits required
* Further technical details are available upon request
