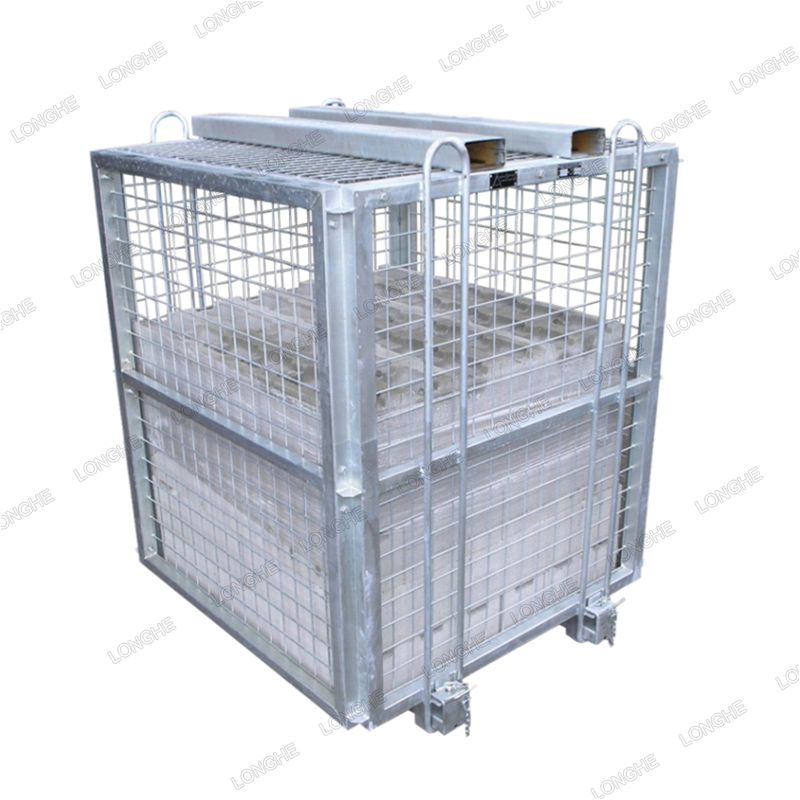

The BSN6 Brick Cage is designed to convey pallets of bricks or similar loose products safely via overhead crane.
● Four-point lift
● Detachable and foldable
● Suitable for 1200mm square pallets
Technical Specifications:
● Volume: 1.5m3
● Flatpack size: 1750*1370*475mm
● Weight: 255kg
● Max. height of pallet: 1500mm
● Lift capacity: 2000kg
● Mesh spacing: 75*75mm
● Outer frame size: 1340*1340*1720(H)mm
● Surface treatment: cold galvanized
| Type | SWL | Overall Width | Overall Depth | Overall Height | Unit Weight |
| (kg) | (mm) | (mm) | (mm) | (kg) | |
| BSN6 | 2000 | 1340 | 1340 | 1720 | 255 |
