Goods Cage

PCM-01

A multi-use pallet-size cage, designed to suit all warehousing and storage requirements, can be quickly dismantled for space-saving and transport efficiency.

● Can be stacked up to two-high when loading

● Cold galvanized base plate option available to customer requirement

● Fitted with a folding gate in front and a hinged gate at the rear, for ease of loading

● Can be assembled or dismantled quickly, saving space and improving transportation efficiency.

● Safe working load: 1000kg

● Weight: 65kg

● Volume: 1m³

● Mesh spacing: 75*50mm

● Outer frame size: 1160*1160*990(H)mm

PCT-02

It is a versatile and stackable storing cage, designed for storing or carrying bulk or packed goods

The equipped folding and hinged gates make it convenient for loading and unloading; easy storage for its disassembly, saving space and also free to transport.

● Used for standard hardwood pallet (optional)

● Safe working load: 2000kg (evenly distributed)

● Volume: 1m³

● Outer frame size: 1154x1154x876(H) mm

● Mesh spacing: 75x50mm

● Unit weight: 75.0kg (with hardwood pallet), 40.0kg (without hardwood pallet)

● Surface treatment: galvanized finish

● Can be stacked up to 2 high when loaded

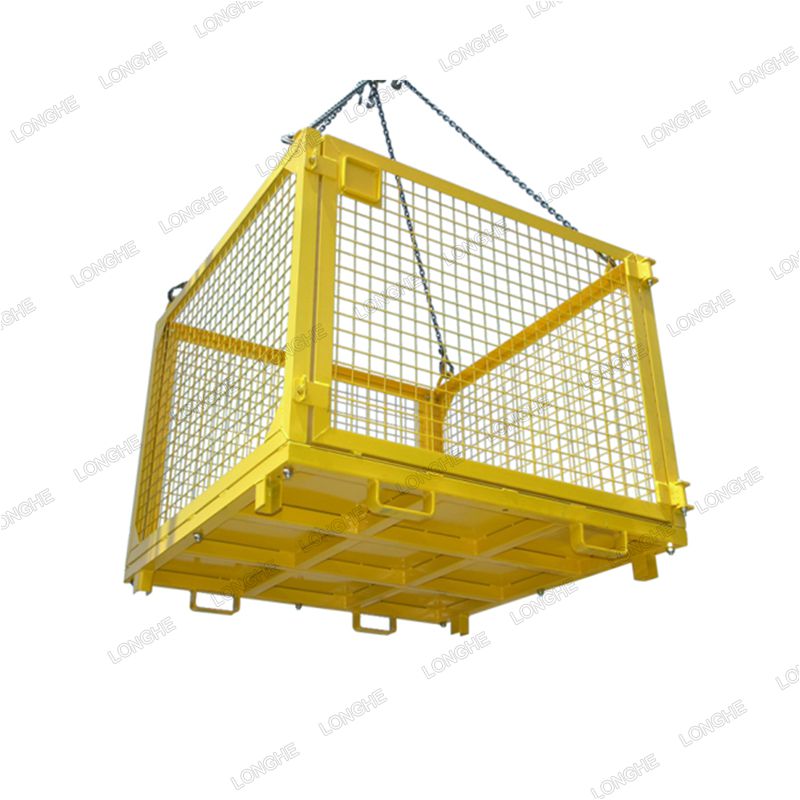

CSPN

● This Goods Cage CSPN is able to safely carry bulk or packed goods by using forklift or crane

● The wide-open gate allows the entrance of square pallet with the max width of 1200mm.The storing space can be further enlarged when stacked by bridge crane to save space. This cage can be stacked up to three levels when empty and two level when full loaded

● 4 point lift

● Outer frame size: 1350x1350x1153(H)mm

● Mesh spacing: 50x50mm

● Lift capacity: 1000kg

● Unit weight: 160.0kg

● Volume: 2.3 m³

● Surface treatment: painted or galvanized finish
