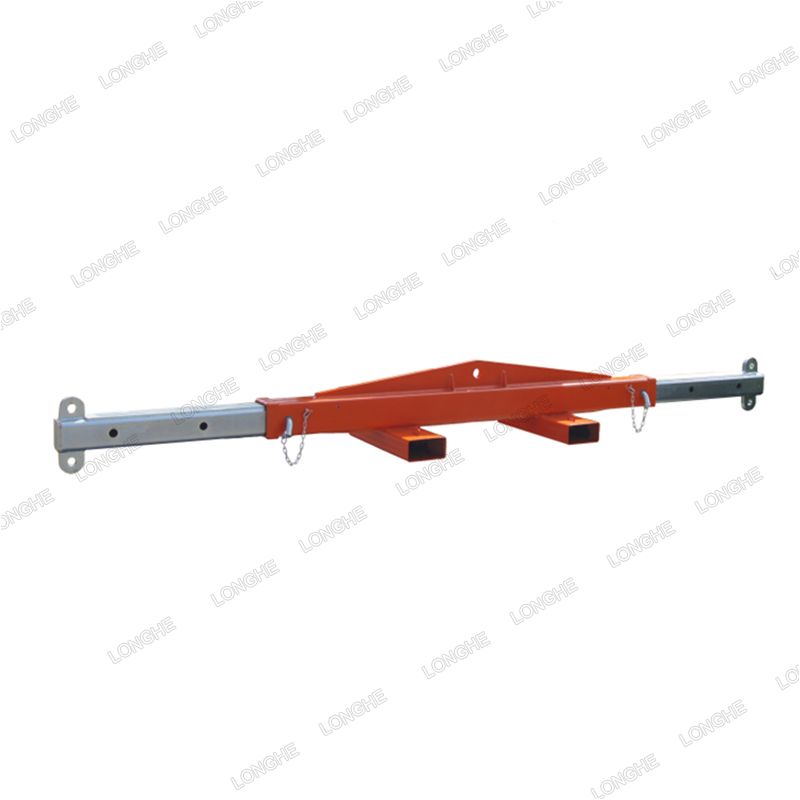

Forklift Spreader Beam

Forklift Spreader Beam is a unique multitasking Beam that can be used by crane or forklift to lift long loads. The unit is supplied standard with a safety swivel hook on each end.

Forklift Spreader Beam is a unique multitasking Beam that can be used by crane or forklift to lift long loads. The unit is supplied standard with a safety swivel hook on each end.

● Rated Capacity (RC Max.): 9000kg

● Load Centre (LC): 2405mm

● Unit Weight: 172kg

● F/Lift HCG: 300mm

● Surface treatment: The extendable arms are zinc plated, with the main body painted in ‘safety orange’.


Rated Capacity (RC) When Used AsFully RetractedMiddle Position Fully Extended
 (LC@2405mm)(LC@3165mm)(LC@3925mm)
Forklift Attachment3500kg1500kg750kg
Lifting Beam4500kg2500kg1300kg
Spreader Beam9000kg7200kg5600kg
