Push-Pull Quick Mount

Push-Pull are designed for palletless packed goods handling and stacking operations. With the aid of slipsheet which replaces pallet, sheets with loads on were pulled onto the carrying plate of set and were pushed out to spot of destination.

Push-Pull are designed for palletless packed goods handling and stacking operations. With the aid of slipsheet which replaces pallet, sheets with loads on were pulled onto the carrying plate of set and were pushed out to spot of destination. It features of high productivity with easy maintenance and changing, lower running cost are gained. And mainly used industries such in petrochemical, chemical, pharmaceutical, logistic industries and any other industries that uses palletless handling systems.


Functions & Applications

Pusher/Push Pull is designed for slipsheet applications requiring high productivity with easy maintenance.


Features

● Excellent driver visibility

● Flexible spacing between both fork planks

● Smooth contact parts ease the damage of slide plate

● Strength and durability to work in demanding applications

● High strength and secure structure

● Simplified hydraulic system

● Smooth operation with the buffering function of cylinder

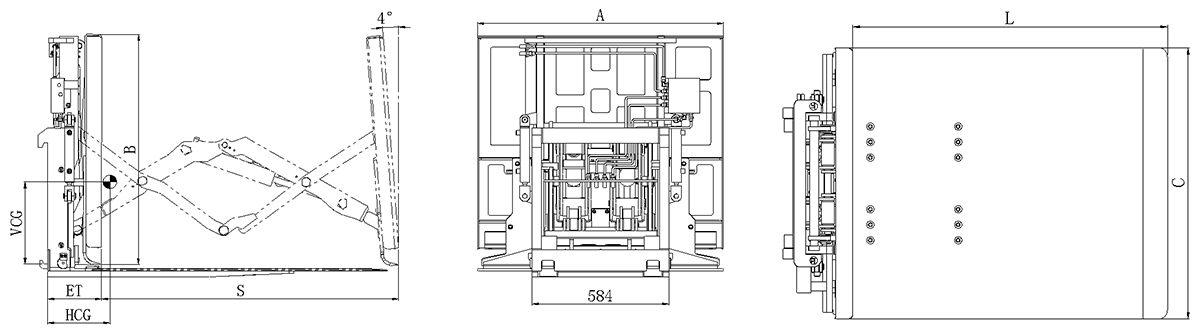

Push-Pull Quick Mount


Capaticy@
Load Center
Catalog
Order No.
TypeFACEPLATE SIZEPLATEN SIZEMounting
Class
Fork DistanceSTROKEMimimum
Truck
Carriage
Width
Vertical
Center of
Gravity
WeightEffective
Thickness
Horizontal
Center of
Gravity
(kg@mm)

(mm)(mm)



VCG(mm)(kg)ET(mm)HCG(mm)
2000@600TLQ20H-005Quick Mount1050x9821220x1050II/III105012001000251524230308
2000@600TLQ20H-007Quick Mount1050x9821220x1050II/III105012701000247529230325


Recommend Hydraulic Flow: 40L/min –120L/min

Pressure: 160 Bar

Note

1. Please contact FLT manufacture for the residual capacity of attachment

2. TLQ20F does not equip sideshifting function, available upon request

3. 1 additional hydraulic circuit required

* Further technical details are available upon request
