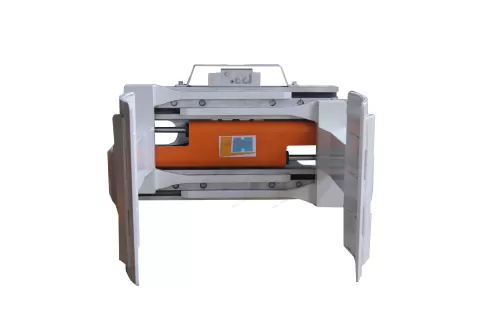

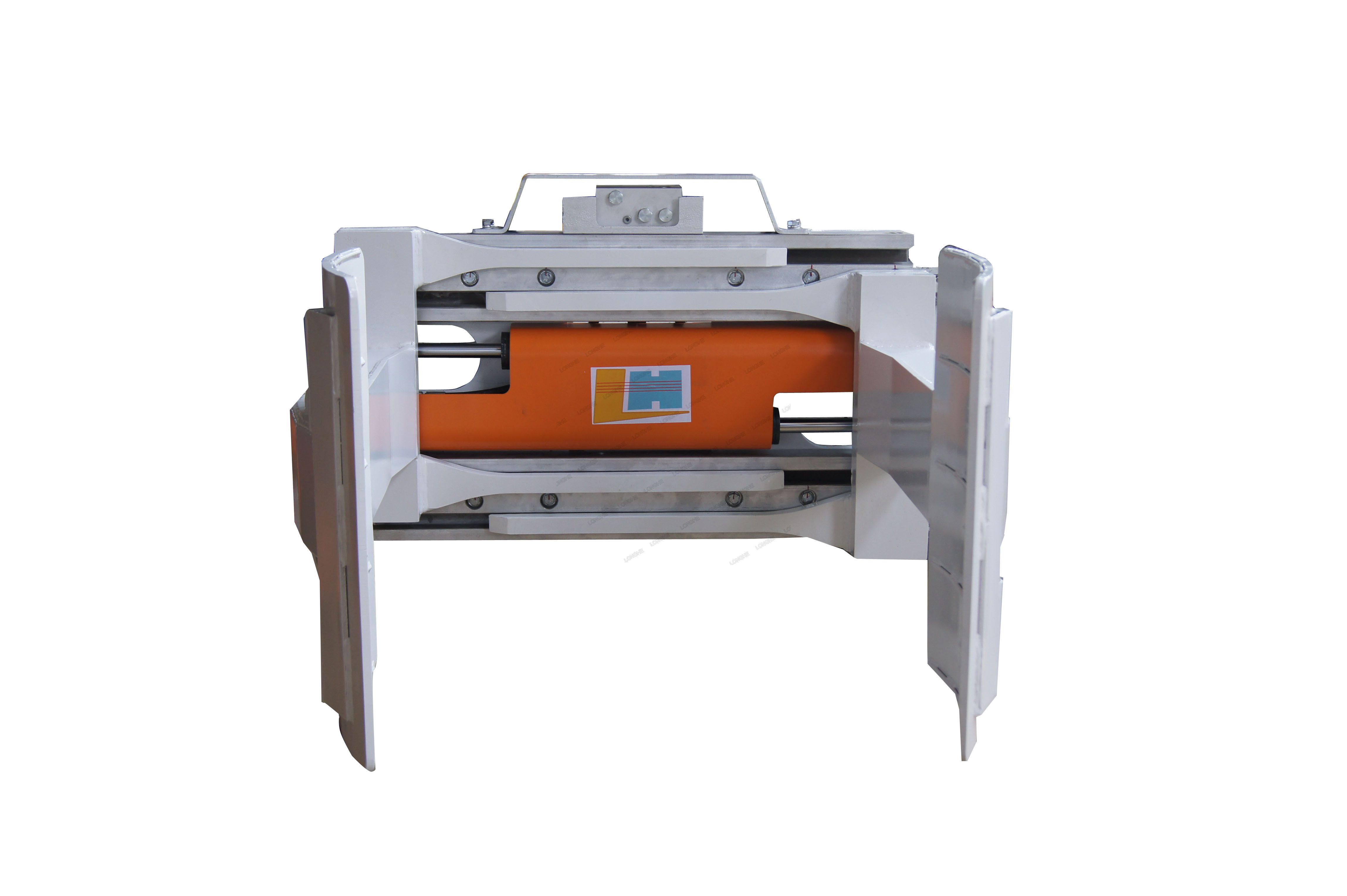

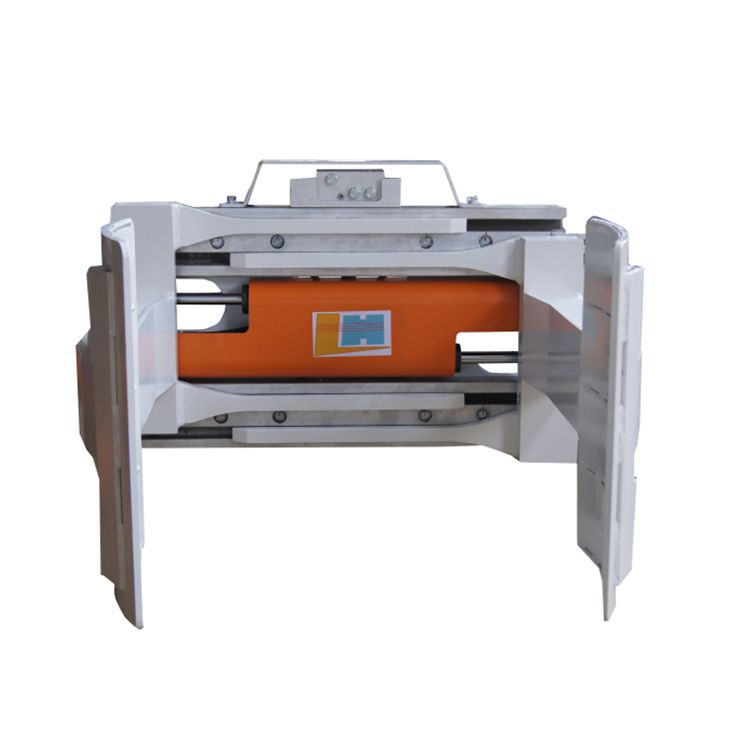

Designed for tyres handling and stacking operations and applied wildly in tyre manufactures，ware-house and logistic transportation companies. Lateral sliding arm design and side shifting function guarantee the smooth clamping and easy entering with high production efficiency. Following lower running costs and high safety.
Functions & Applications
Widely used in palletless handling and stacking of tyre, this Tyre Clamp is featured with high safety and efficiency, room saving and lowered working strength.
Features
● Reasonable design with compact structure jointed with good visibility, easy operation and high efficiency
● 360° rotating angle from left or right side, self-locked at any angle, position locked at 90°or 180°angle
● With good function of pressure preservation, non-returning valve ensures firm clamping during long-distance transportation
● Easy operation in small area and lower damage to tyre with smooth and thin designed arms
● Imported high-quality key hydraulic device
| Capacity@ Load Center | Model | Mounting Class | Opening Range | Frame Width | Arm Length | Hook Spread | Overall Height | Contact Pad Size | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| kg@mm | A(mm) | W(mm) | B(mm) | M(mm) | H(mm) | LxG(mm) | VCG(mm) | (kg) | ET(mm) | HCG(mm) | ||
| 1400@500 | LTJ14E-B001 | Ⅱ | 390-1550 | 940 | 1020 | 700 | 670 | 450x600 | 229 | 375 | 130 | 290 |
| Hydraulic Flow and Pressure | ||||
| Model | Pressure (Bar) | Hydraulic Flow (L/min) | ||
| Rated | Min | Rec | Max | |
| 14E | 160 | 20 | 40 | 60 |
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. With sideshifting, 2 additional hydraulic circuit required
Without sideshifting, 1 additional hydraulic circuit required
3. Opening range refers to distance between arm steel pad
*Further technical details are available upon request
