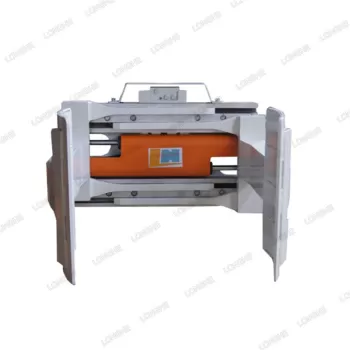

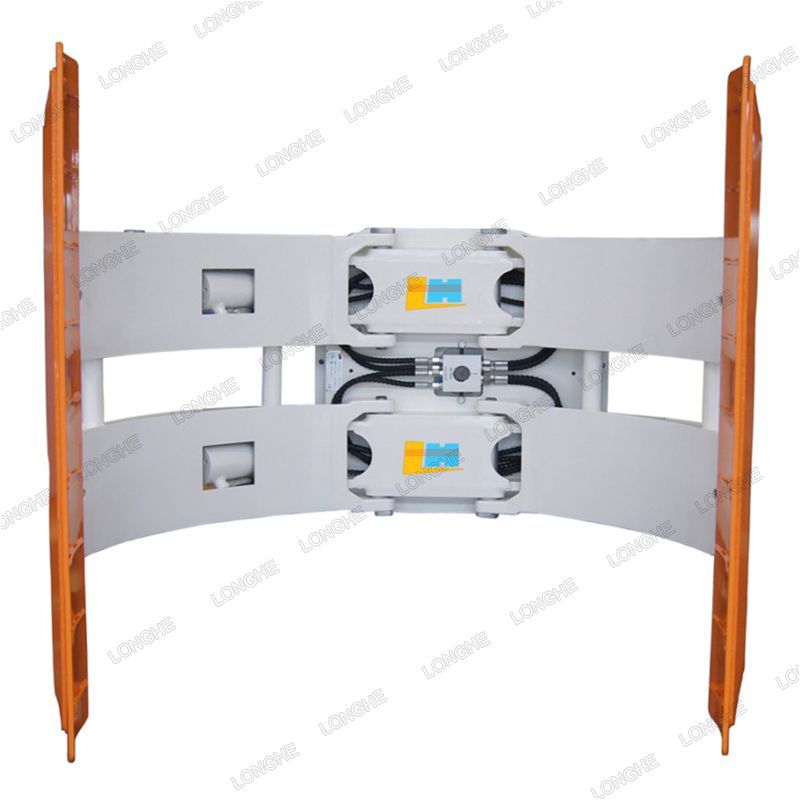

Designed for tyres handling and stacking operations and applied wildly in tyre manufactures, ware-house and logistic transportation companies. Lateral sliding arm design and side shifting function guarantee the smooth clamping and easy entering with high production efficiency. Following lower running costs and high safety.
Applications of Rotating Tyre Clamp

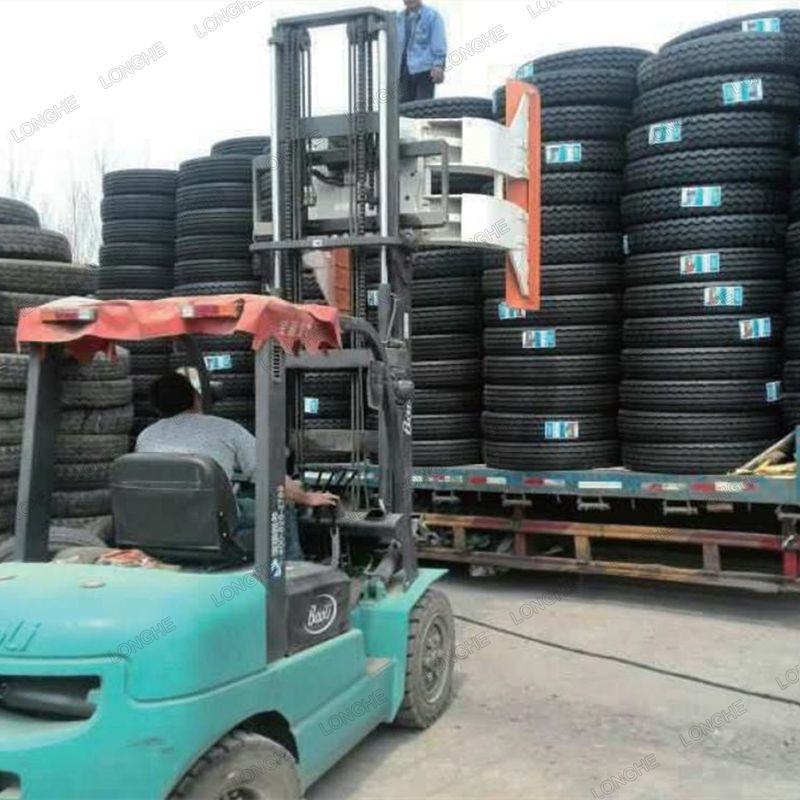

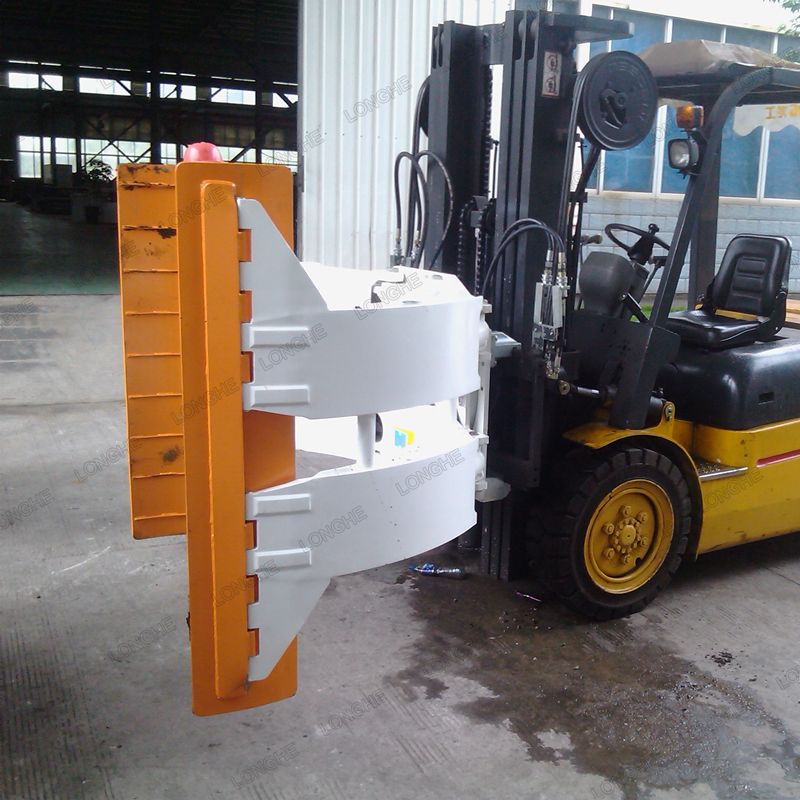

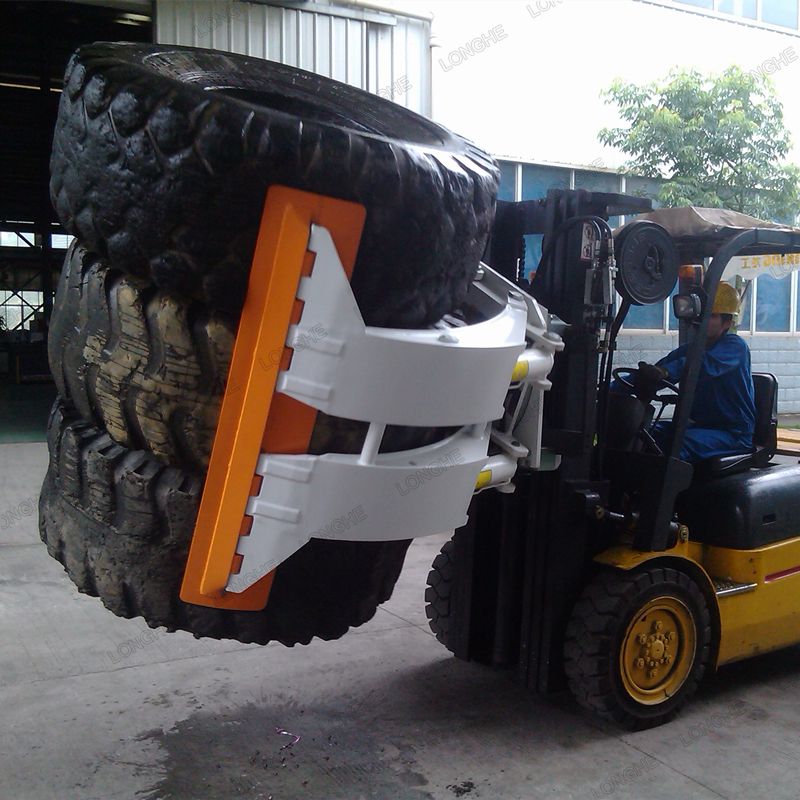

Widely used in palletless handling and stacking of tyre, this Tyre Clamp is featured with high safety and efficiency, room saving and lowered working strength.
Features of Rotating Tyre Clamp
● Reasonable design with compact structure jointed with good visibility, easy operation and high efficiency.
● 360° rotating angle from left or right side, self-locked at any angle, position locked at 90°or 180°angle.
● With good function of pressure preservation, non-returning valve ensures firm clamping during long-distance transportation.
● Easy operation in small area and lower damage to tyre with smooth and thin designed arms.
● Imported high-quality key hydraulic device.
Longhe Attachment has different rotating tire clamp with various capacity options to meet different requirement. Don't see what you need? Don't hesitate to contact us to get more details of rotating tyre clamp. We will offer professional technical guidance and friendly service to any customers from worldwide.

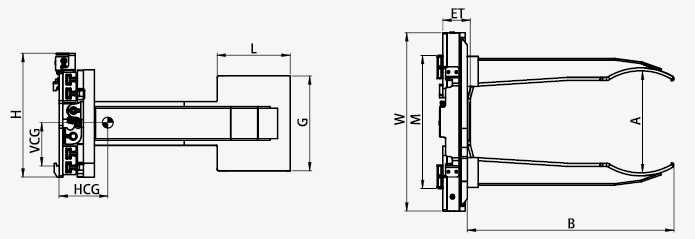

| Capacity | Roll Range | Model | Type | Mounting Class | Long Arm Thickness | Short Arm Length | Long Arm Thickness | Contact Pad Size | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| (kg) | (mm) | A(mm) | B(mm) | C(mm) | WxH(mm) | VCG(mm) | (kg) | ET(mm) | HCG(mm) | |||
| 1200 | 410-1300 | LTJ12D-B001 | A | II | 820 | 570 | 95 | 230x1500 | 280 | 460 | 150 | 250 |
| 2000 | 630-1580 | LTJ20D-C001 | B | III | 1035 | 775 | 95 | 300x1500 | 343 | 810 | 256 | 301 |
| 2000 | 350-1580 | LTJ20D-C002 | A | III | 1035 | 775 | 95 | 300x1500 | 343 | 820 | 256 | 304 |
| 2000 | 630-1330 | LTJ20D-C003 | A | III | 835 | 550 | 95 | 300x1500 | 343 | 736 | 256 | 307 |
| 1700 | 750-1800 | LTJ17D-C001 | A | III | 1175 | 795 | 85 | 300x1500 | 343 | 935 | 256 | 345 |
| 1700 | 400-1800 | LTJ17D-C002 | B | III | 1175 | 795 | 85 | 300x1500 | 343 | 986 | 256 | 345 |
| Hydraulic Flow and Pressure | ||||
| Model | Pressure (Bar) | Hydraulic Flow (L/min) | ||
| Rated | Min | Rec | Max | |
| 14E | 160 | 20 | 40 | 60 |
Note
1. Please contact FLT manufacture for the residual capacity of attachment.
2. With sideshifting, 2 additional hydraulic circuit required; without sideshifting, 1 required.
3. Opening range refers to distance between arm steel pad.
*Further technical details are available upon request, contact us .
