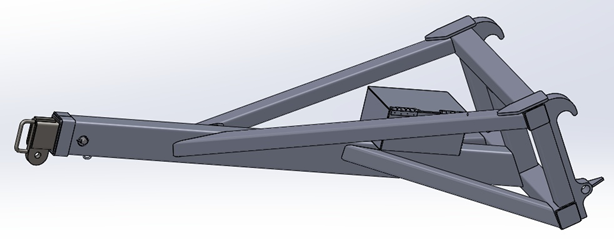

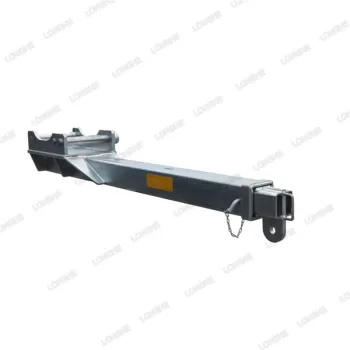

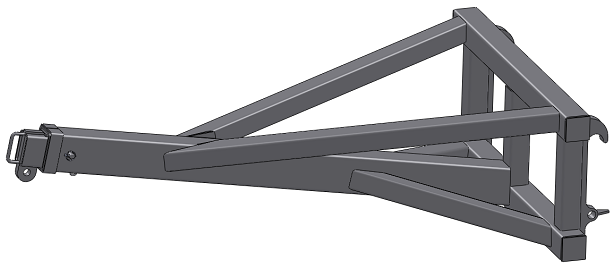

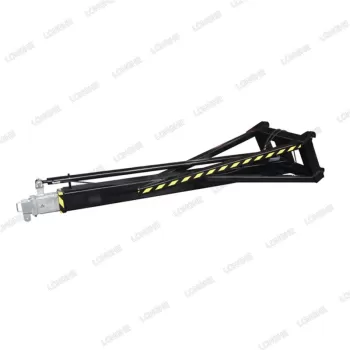

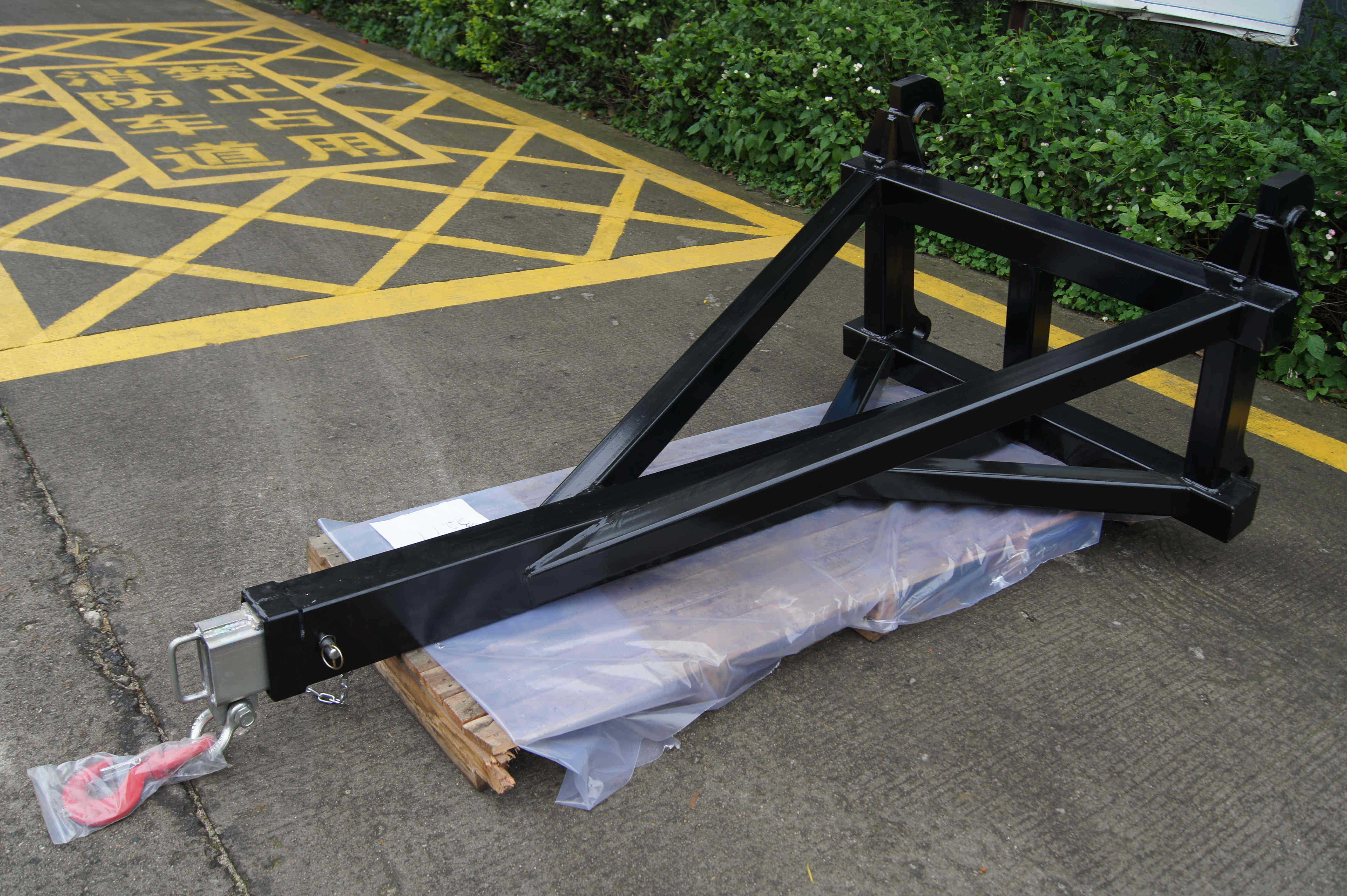

The crane jib is designed with a focus on safety and reliability.
All our crane jibs have a safety stop that prevents the lifting arm from slipping out of the fixed hollow.
To maximize use, there are several attachment points and it is 2 divided.
| Model | Coupling&Bracket | Capacity | Angel | Length extension | Weight |
| (kg) | (°) | (mm) | (kg) | ||
| QDB20M-5882-1930 | SMS | 2000 | 10° | 1930 | 201 |
| QDB20M-5887-2025 | EURO | 2000 | 10° | 2025 | 152 |
| QDB20M-WGG-2055 | Without coupling | 2000 | 10° | 2055 | 138 |
| QDB20M-5892-2025 | Big BM | 2000 | 10° | 2025 | 184 |
| QDB20M-5894-2025 | Volvo L30 | 2000 | 10° | 2025 | 151 |
| QDB20M-Kramer-2025 | Kramer 380-580 | 2000 | 10° | 2025 | 158 |
| QDB20M-5894/20°-2025 | Volvo L30/20° | 2000 | 10° | 2025 | 166 |
| QDB20M-2100120-2025 | Terex80-120 | 2000 | 10° | 2025 | 165 |
| QDB28G-5892-2350 | Big BM | 2800 | 10° | 2350 | 434 |
| QDB28J-5892-2350 | Big BM | 2800 | 10° | 2350 | 491 |
| QDB28G-5882-2350 | SMS | 2800 | 10° | 2350 | 409 |
| QDB28J-5892-2350 | SMS | 2800 | 10° | 2350 | 474 |
| QDB30M-5892-2850 | Big BM | 3000 | 10° | 2850 | 306 |
| QDB40M-MT750-1930 | MTFaste | 4000 | 10° | 1930 | 219 |
| QDB50M-5892-3110 | Big BM | 5000 | 25° | 3110 | 368 |
| QDB30N-5887-1535 | EURO | 3000 | 10° | 1535 | 201 |
| QDB50N-5892-2253 | Big BM | 5000 | 10° | 2253 | 610 |
| QDB150Q-5892-1040 | Big BM | 15000 | 20° | 1040 | 201 |
| Model | Coupling&Bracket | Capacity | Angel | Length extension | Weight |
| (kg) | (°) | (mm) | (kg) | ||
| QDB20R-5882-1690 | SMS | 2000 | 30° | 1690 | 139 |
| QDB20R-5887-1690 | EURO | 2000 | 30° | 1690 | 149 |
| QDB20R-L20-25-1690 | zettelmeyerl20-25 | 2000 | 30° | 1690 | 154 |
| QDB20R-5894/20°-1690 | Volvo L30/20° | 2000 | 30° | 1690 | 162 |
| QDB20R-5894-1690 | Volvo L30 | 2000 | 30° | 1690 | 145 |
Note
* Further technical details are available upon request
