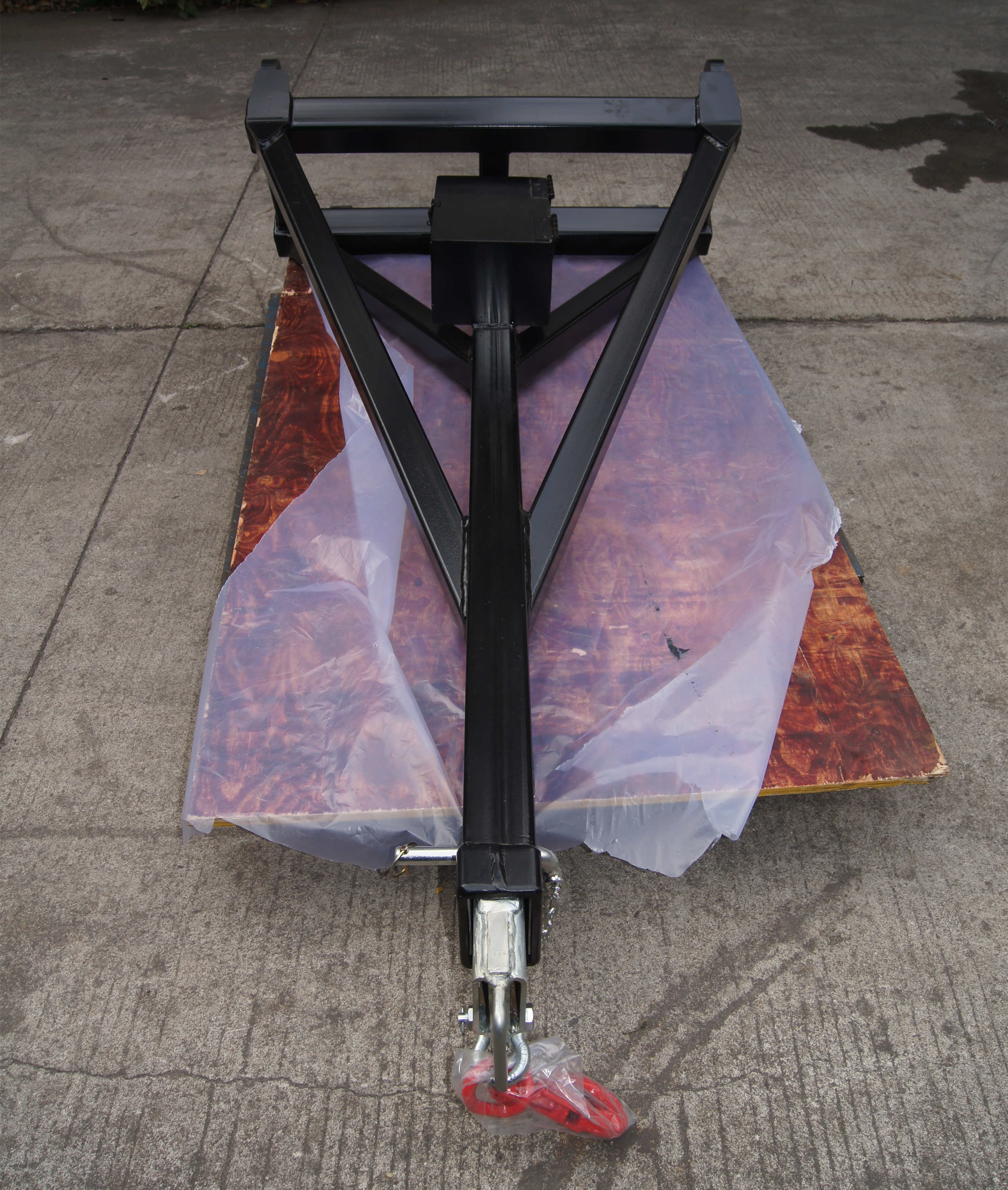

The crane jib is designed with a focus on safety and reliability.
All our crane jibs have a safety stop that prevents the lifting arm from slipping out of the fixed hollow.
To maximize use, there are several attachment points and it is 2 divided.
| Model | Coupling&Bracket | Capacity | Angel | Length extension | Weight |
| (kg) | (°) | (mm) | (kg) | ||
| QDB20R-5882-1690 | SMS | 2000 | 30° | 1690 | 139 |
| QDB20R-5887-1690 | EURO | 2000 | 30° | 1690 | 149 |
| QDB20R-L20-25-1690 | zettelmeyerl20-25 | 2000 | 30° | 1690 | 154 |
| QDB20R-5894/20°-1690 | Volvo L30/20° | 2000 | 30° | 1690 | 162 |
| QDB20R-5894-1690 | Volvo L30 | 2000 | 30° | 1690 | 145 |
Note
* Further technical details are available upon request
