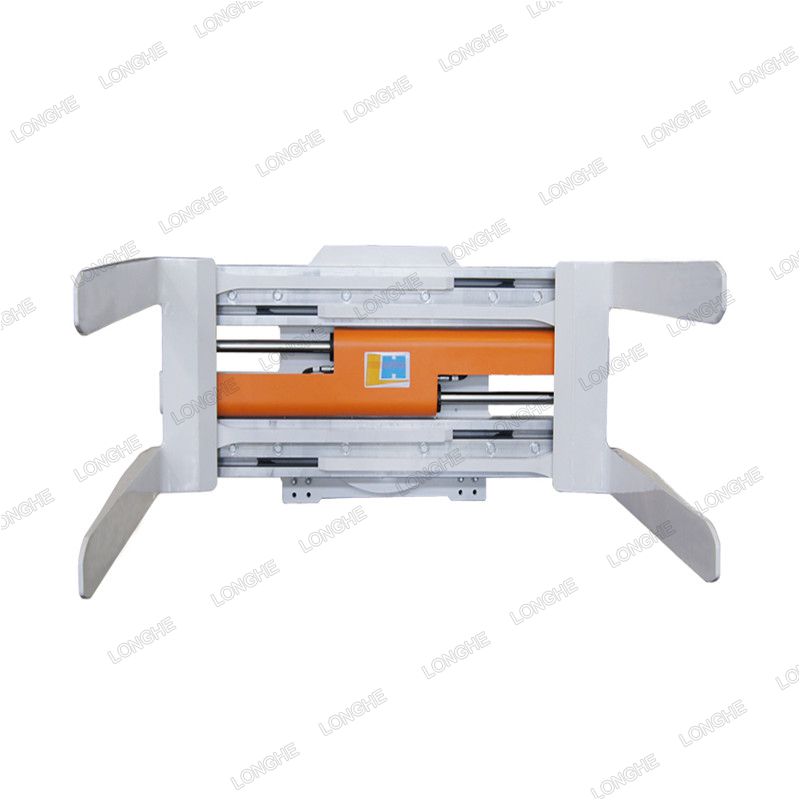

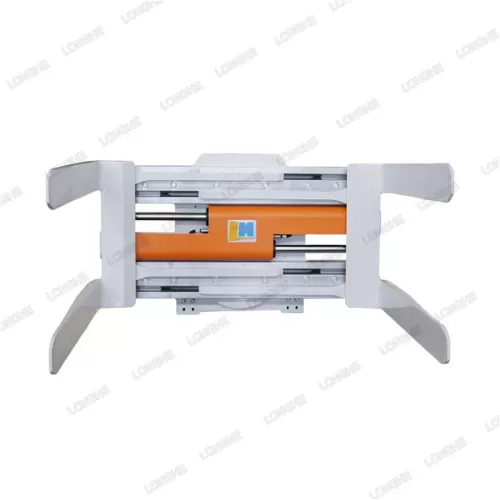

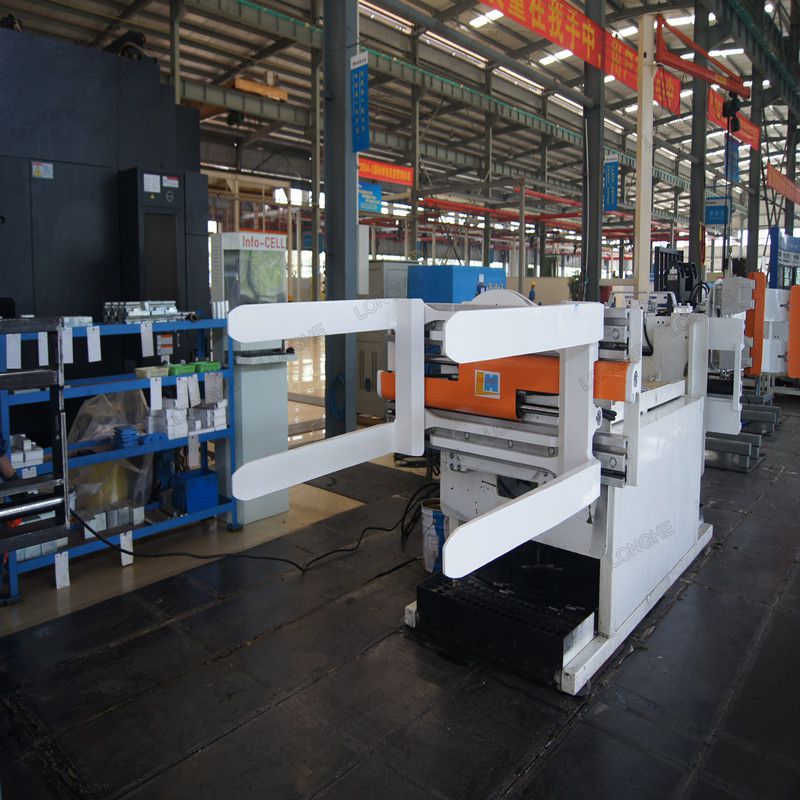

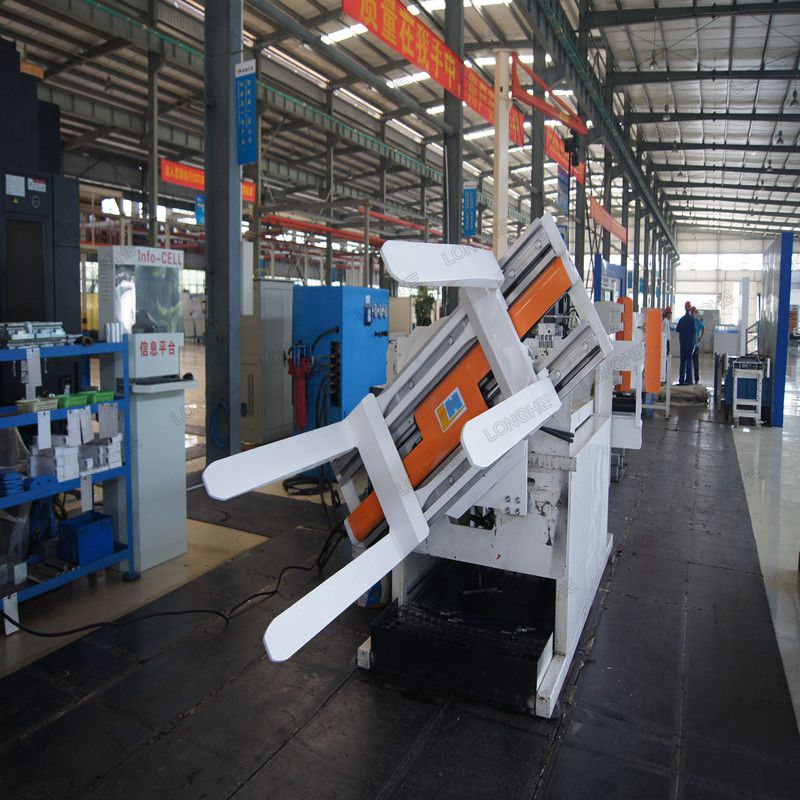

Rotating fork clamp with two pairs of fork is generally designed to handle he load with pallet or in bales, also to be used as pallet inverter for changing pallet of load before deliverying in industries as petrochemical, food, fertilizers, cement and logistic warehouse
Functions & Applications
Fork clamp is generally used in handling of pallets and clamping of goods.Different clamp arms can be installed on the forks to realize special functions.
Features
● Superior arm-slide bearing for extended service life
● Optimized construction for excellent driver visibility and secure operation.
● T-beam sliding pair, long service life.

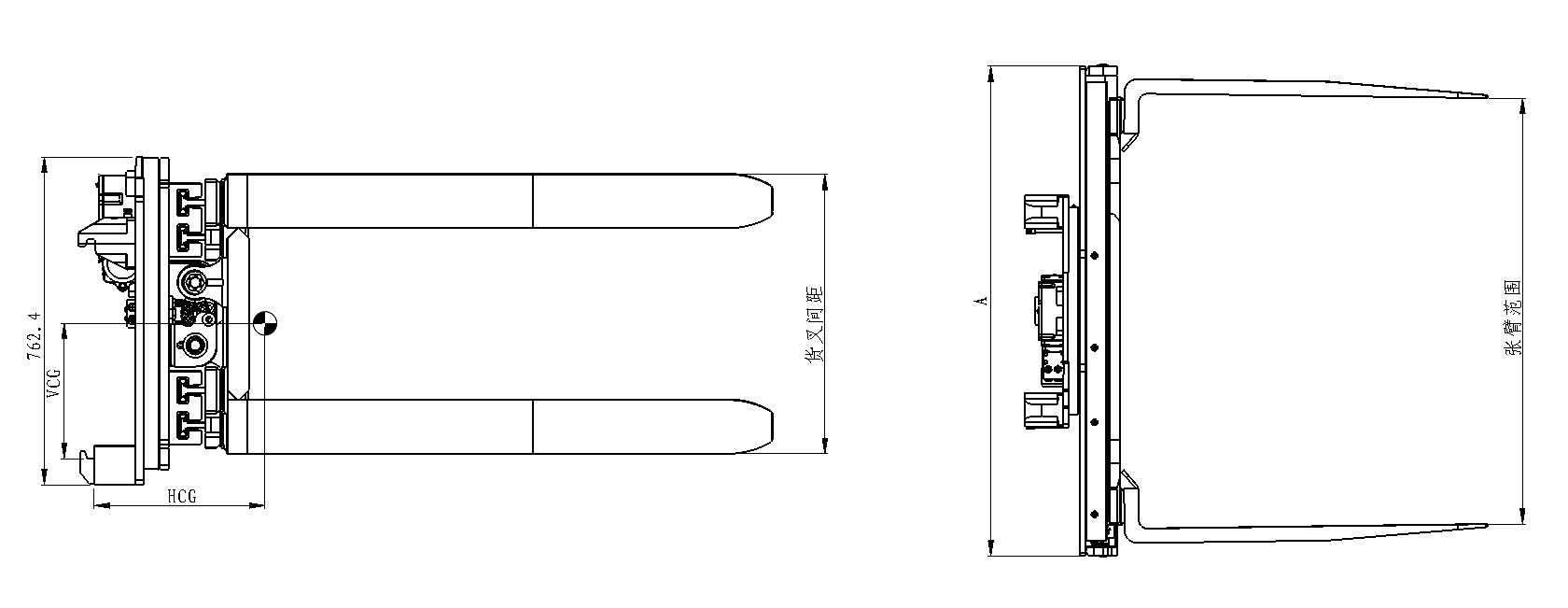

| Capacity@ Load Center | Model | Mounting Class | Opening Range | Frame Width | Fork Dimention | Tine Spacing | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| (kg@mm) | A(mm) | (mm) | S*E*B(mm) | (mm) | VCG(mm) | (kg) | ET(mm) | HCG(mm) | ||
| 1600@600 | XZC16D-B001 | Ⅱ | 530-1930 | 1230 | 45*125*1000 | 560 | 354 | 650 | 290 | 292 |
| 1600@600 | XZC16D-B002 | Ⅱ | 465-1500 | 940 | 45*125*1070 | 900 | 344 | 627 | 293 | 287 |
| 2300@600 | XZC23D-C008 | Ⅲ | 500-2340 | 1710 | 50*125*1220 | 650 | 345 | 877 | 345 | 331 |
| 2300@600 | XZC23D-C009 | Ⅲ | 700-2050 | 1016 | 50*125*1220 | 650 | 400 | 771 | 353 | 300 |
| 2300@600 | XZC23D-C010 | Ⅲ | 500-2340 | 1710 | 50*125*1220 | 550 | 342 | 877 | 353 | 331 |
| 2300@600 | XZC23D-C011 | Ⅲ | 700-2050 | 1016 | 50*125*1220 | 900 | 313 | 810 | 353 | 365 |
| 2300@600 | XZC23D-B012 | Ⅱ | 675-2025 | 1065 | 50*125*1220 | 730 | 345 | 760 | 315 | 330 |
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 2 additional hydraulic circuits
3. Opening range refers to the internal spacing of the tip of clamp arm
* Further technical details are available upon request
