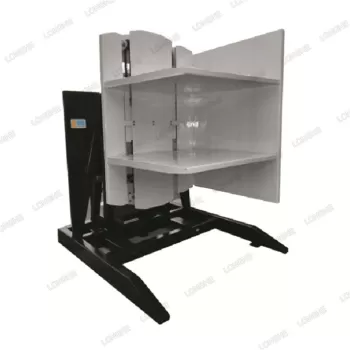

Pallet Changer B Series

Longhe Floor flush design to enable loading of load by pallet trucks. Enable changing of pallet for stable load. Specially design backward tilting change pallets without inverting load. Simple and safe to operate. Available in optional automatic sequencing control and fully automated in-line design.


Floor flush design to enable loading of load by pallet trucks. Enable changing of pallet for stable load. Specially design backward tilting change pallets without inverting load. Simple and safe to operate. Available in optional automatic sequencing control and fully automated in-line design.



Functions & Applications

Designed to provide a reliable, economical and efficient means of inverting loads, allows transfer of boxed, bagged or canned products to pallet or slipsheet, freezer spacer removal, damaged carton replacement.


Features

● Self-contained power pack

● Adjustable relief valve and restrictor cartridge

● Stable platform

● Fork pockets for easy relocation

● Special and durable rubber pad as cushion on rotating end Options

● Custom opening range

● Custom pad size

● Custom power supply

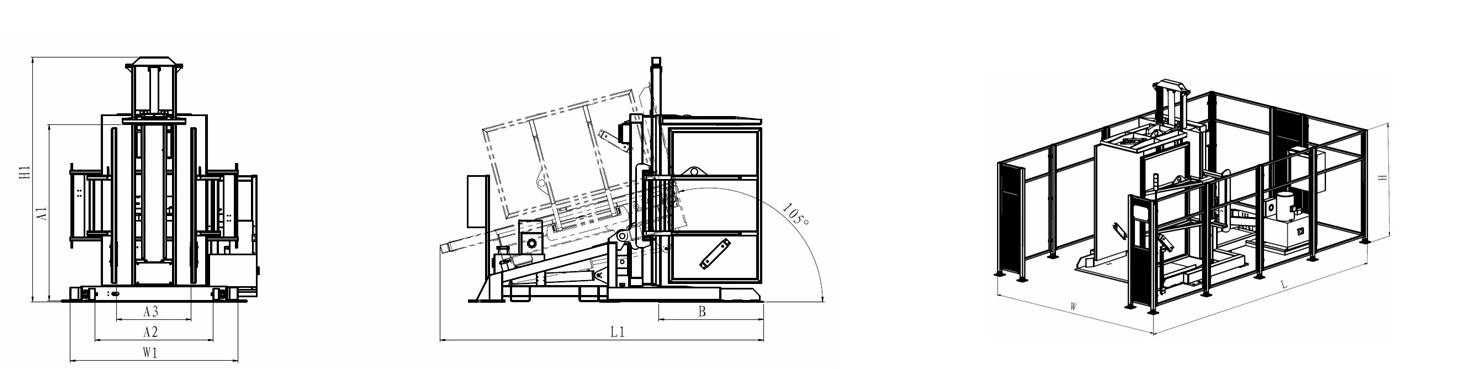

 Pallet Inverter B Series

Capacity@Load

Center

Model

Safe Guard

Fencing Size

Pallet Inverter SizePlatform Size

Upper Arm

Opening Range

Lateral Support
Opening Range

Lateral

Clamping

Range
RotationWeight
(kg@mm)
W x L x  H
(mm)
W1xL1xH1
(mm)
B
(mm)
A1
(mm)
A2
(mm)
A3
(mm)
(°)(kg)
1500TPQ15B-0013182x5052x17701950x3760x28401200600-2050780-1490750-1370105°2800


Recommend Hydraulic Flow: 20L/min

Pressure: 16 Bar


Note

1. Working Pressure: 16MPa

2. Operational voltage type outer power rating upon requested

* Further technical details available upon request
